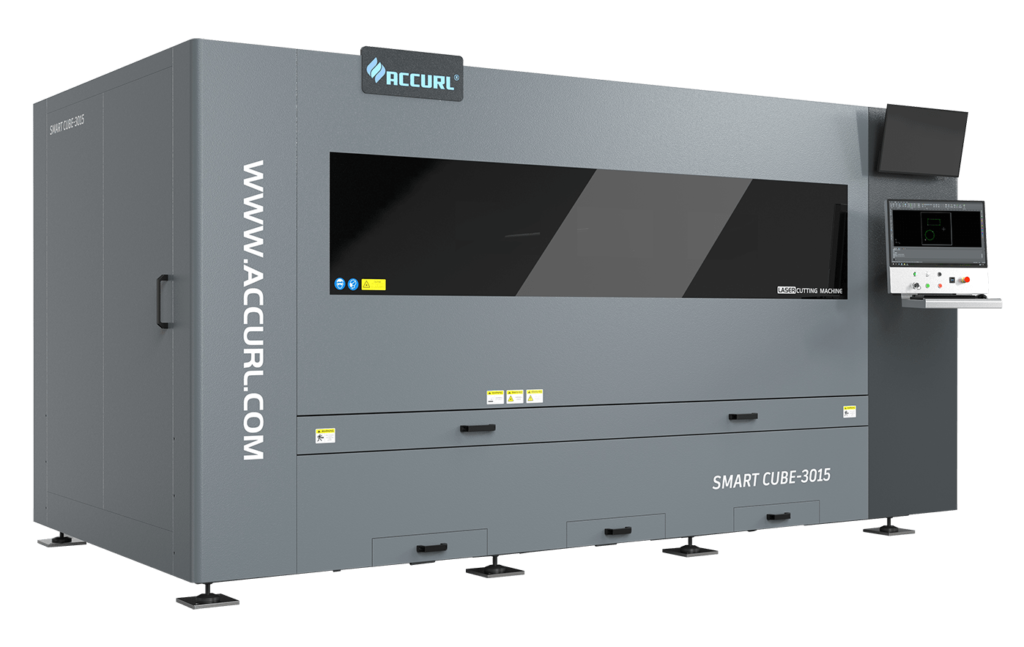

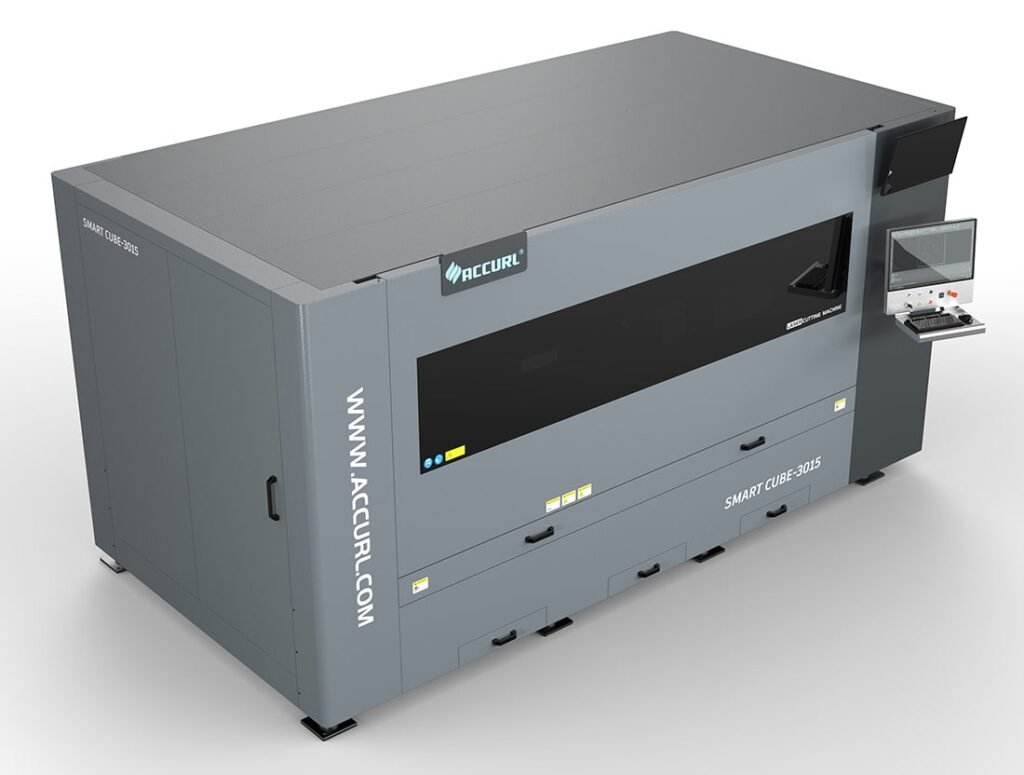

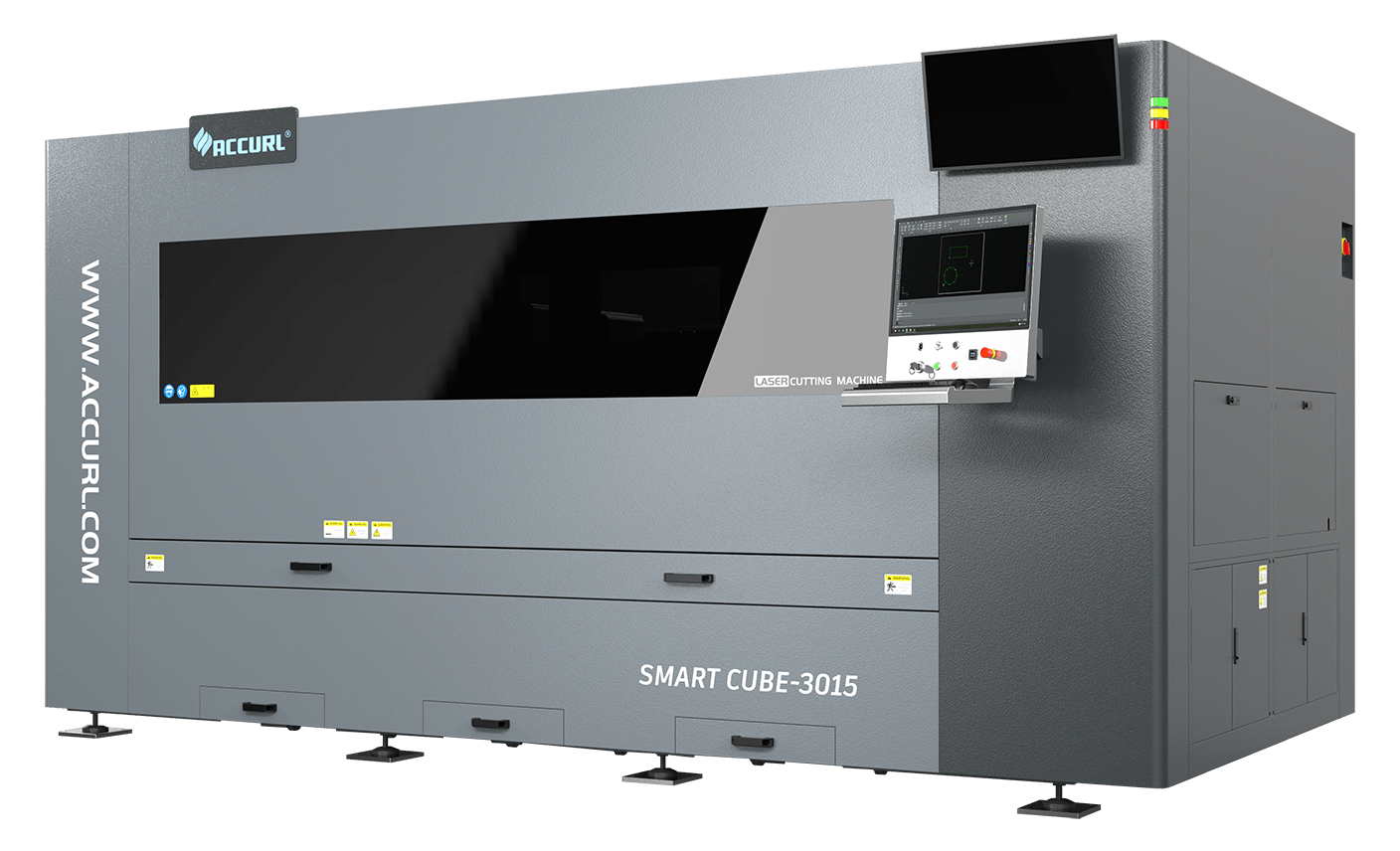

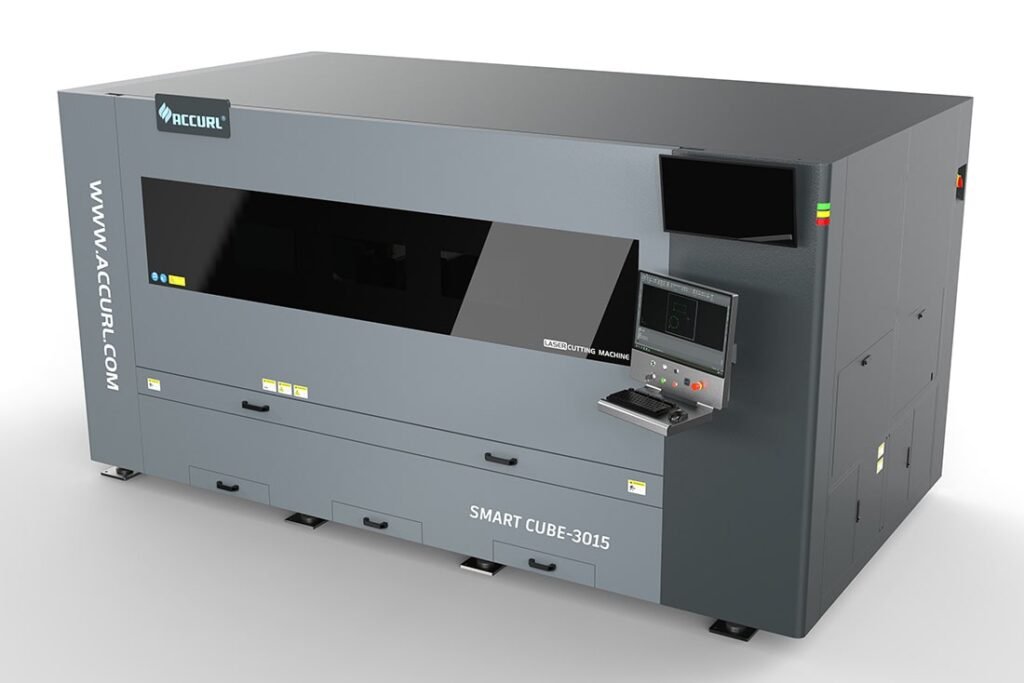

Compact 1kW ~ 6kW Laser Cutting SMART Cube
ACCURL
Compact 1 kW ~ 6 kW Laser Cutting SMART Cube
Elevate your performance in Compact Laser Cutting for sheet metal
Experience precision and efficiency with the Cube Compact laser cutting machine, an ideal solution for compact laser cutting. This innovative system seamlessly integrates precise 2D laser cutting into a sleek, space-saving design. Available in machining areas of 1,000 x 2,000 mm, 1,250 x 2,500 mm, and 1,500 x 3,000 mm, the CUBE Compact delivers exceptional cutting quality while minimizing space requirements.
SMART Cube 1kW ~ 6kW Fiber Laser
Includes Following Features And Configuration
Experience the outstanding dynamics of the CUBE Compact series, designed with a low-set gantry, digital AC servo motors, and precise planetary gearboxes. Elevate your production capabilities with the CUBE Compact for top-notch performance and efficiency.
Compact Design
Range of Laser Sources
Manually Retractable Cutting Table
High Precision
Low Maintenance and Operating Costs
Customer ERP connection
Importing of production list order from customer ERP.
Human Machine Interface
Interacting in an easy and friendly way, through touch screen, with the machine and relevant automation.
Production and Performance data Reporting
Proprietary solution for viewing reports of machine status and analyzing production data.
Cam programming / 2D Cam and Tube Cam
Efficient pogramming for a productive fabrication process:
• Powerful nesting .
• Optimized Post Processor for 2D cut programming and tube cut programming .
• Powerful simulation.
Monitoring / Production Control
Monitoring machine statuses and task lists and displaying all the events of all the machines in one view.
Jobshop 4.0 By Libellula
The system of performing and integrating software solutions to manage every metal sheet working phase in a productive and efficient way.
Compact and technological for outstanding performance
ACCURL® SMART Cube Packed with a host of easy-to-use features, the SMART Cube is the compact, versatile and productive 2D laser cutting machine for undisputed superior quality results. Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Also can optional Axis for round, square and rectangular tubes.
Flexible Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Ready for round, square and rectangular tubes.
Reliable Fully-tested and reliable thanks to the 20 years of experience with the MasterLINE platform.
Profitabie Low operating costs thanks to energy efficiencyand reduced maintenance.
User Friendly Single focusing lens system with automatic nozzle changer. Easy to use programming software and Accurl operator interface.
HYPCUT TwinCAT CONTROL UNIT:
The ACCURL SMART Cube Fiber Laser is controlled with a HypCut FSCUT 8000 CNC control unit which provides unprecedented control of the cutting process.
Advantage:
- 17” high resolution colour TFT
- High-speed EtherCAT communication
- TwinCAT: software for engineering and runtime
- Highly dynamic servo drive technology
- Integrated retention brake control.
- Automatic adaptation of parameters.
- Adjustable error reaction.
Successfully Controlling Precision
HypCut CNC controllers are used in laser cutting machine. And the TwinCAT NC I/CNC automation software is ideally suited for application-specific functions, including adaptive jet control, reverse travel or path resetting.
Successfully Controlling Precision
ACCURL® advocated its own new IoT technology as “Intelligent Internet of things factory”, termed the “Smart-Factory”.
Robust Construction
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress, and they are built to last years of heavy use without distortion.
Advantage:
- Very stiff and stable base frame
- Deformation simulation made by CAE
- Stress points analysis
- Electric welding of high precision
- Usage of high-tech boring machines for extreme precision parts
SMART Cube Technical Specifications
Performance
| Max. X Y speed | 100 m/min |
| Maximum XY acceleration | 60 m/s² |
| Accuracy | ±0,05 mm |
| Repeatability | ±0,03 mm |
Working capacity
| Processable metals | Mild steel, stainless steel, aluminum, copper, brass |
| Maximum sheet dimensions | 1.050 mm x 2.035 mm [2010] 1.300 mm x 2.020 mm [2512] 1.530 mm x 3.050 mm [3015] |
ACCURL CNC press brake use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed, are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.
Features of the IPG equipment are as follows:
- Direct control of all the fiber laser functions
- Synchronized control of the laser source
- Overall power control
- High speed perforation
- Edge machining function
- Cutting data library
- High speed fiber laser cutting
