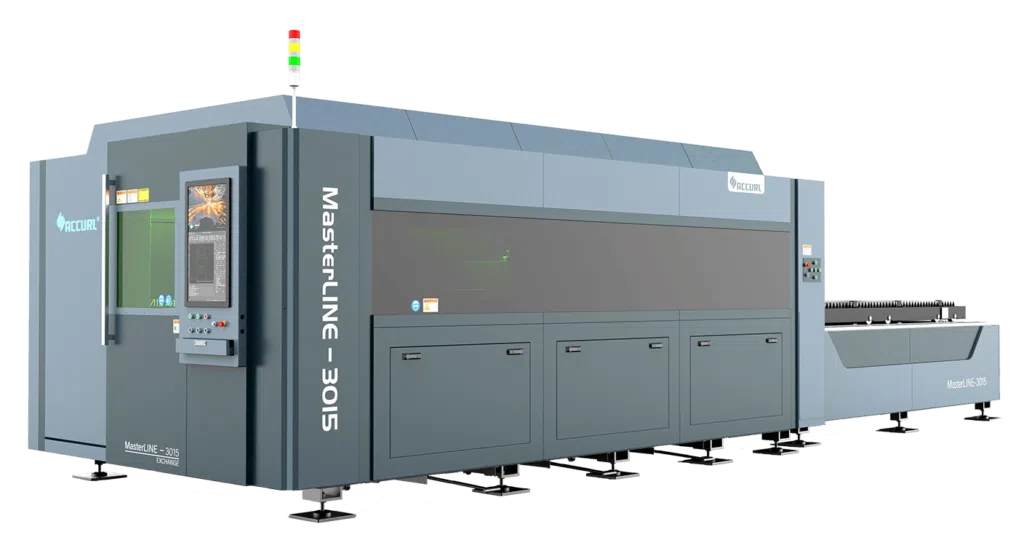

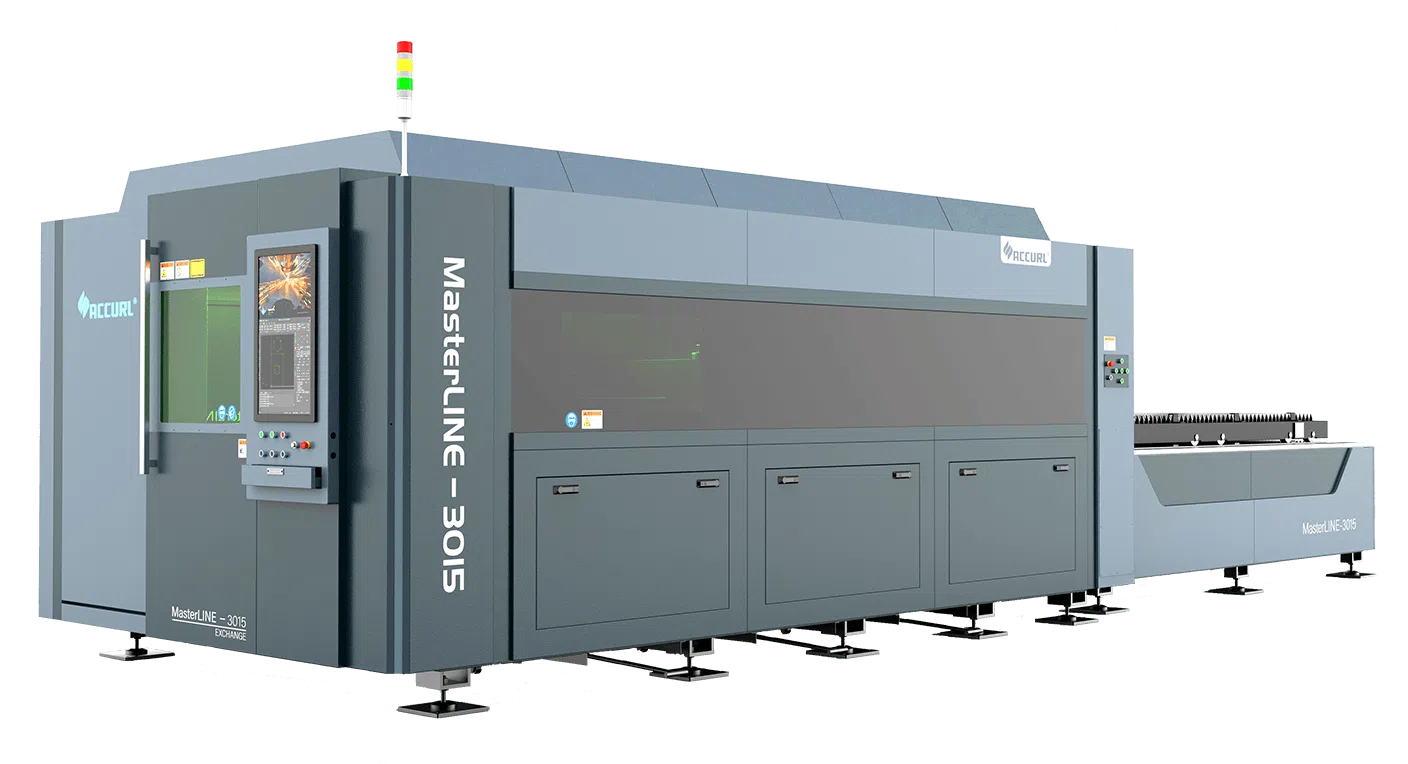

MasterLINE 6Kw-15Kw Fiber Laser Machine
ACCURL
MasterLINE 6Kw-15Kw Fiber Laser
Performance and technology for perfect sheet metal laser cutting
ACCURL® Based on machinery design technology optimized through strict structural analysis, ACCURL has been manufacturing ultralight and high-precision industrial high energy laser cutting machines. In addition, we provide total solution for sheet metal working that customers want such as bending, welding, deburring, and loading automation.
MasterLINE 6Kw-15Kw Fiber Laser
Includes Following Features And Configuration
Flexible
Reliable
Profitabie
User Friendly

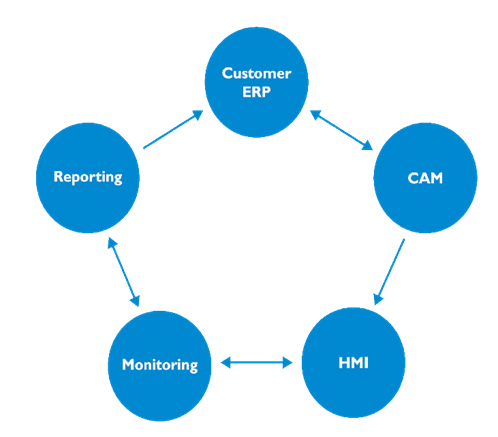

Customer ERP connection
Importing of production list order from customer ERP.
Human Machine Interface
Interacting in an easy and friendly way, through touch screen, with the machine and relevant automation.

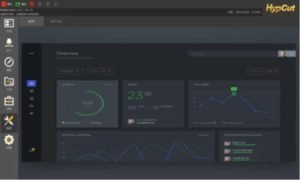

Production and Performance data Reporting
Proprietary solution for viewing reports of machine status and analyzing production data.
Cam programming / 2D Cam and Tube Cam
Efficient pogramming for a productive fabrication process:
• Powerful nesting .
• Optimized Post Processor for 2D cut programming and tube cut programming .
• Powerful simulation.
Monitoring / Production Control
Monitoring machine statuses and task lists and displaying all the events of all the machines in one view.
Jobshop 4.0 By Libellula
The system of performing and integrating software solutions to manage every metal sheet working phase in a productive and efficient way.
Compact and technological for outstanding performance
ACCURL® MasterLINE is one of the markets’ most complete, compact and configurable sheet metal laser cutter, designed to evolve with your needs. No worries about the space required: MasterLINE has a very compact and configurable layout to fit the available space and processing requirements.
Flexible Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Ready for round, square and rectangular tubes.
Reliable Fully-tested and reliable thanks to the 20 years of experience with the MasterLINE platform.
Profitabie Low operating costs thanks to energy efficiencyand reduced maintenance.
User Friendly Single focusing lens system with automatic nozzle changer. Easy to use programming software and Accurl operator interface.

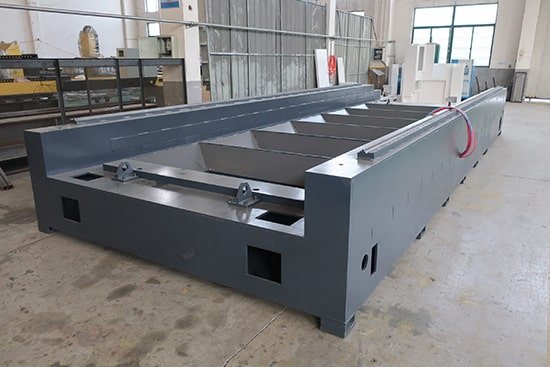

Quality Steel Frames
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. and they are built to last years of heavy use without distortion.
Advantage:
- Very stiff and stable base frame
- Deformation simulation made by CAE
- Eight(8) zone & ducted exhaust system
- Dual synchronized twin servo motor drive system
- Helical rack & slant pinion drive system enables very smooth Movements.
Fully Annealed Frame
ACCURL Innovative gravity-wrap ultra-high-power full-hollow bed with no square connection in the middle, no shielding in the cutting area, and the bed is not subject to high-temperature roasting, no burnout, more durable.
Graphite Anti-burn Technology
The area in the entire machine tool where the laser can shoot at isall covered and protected by 20mm thick graphite anti-bruning To insuring the machine bed and working table not be out of shape and burned-out.

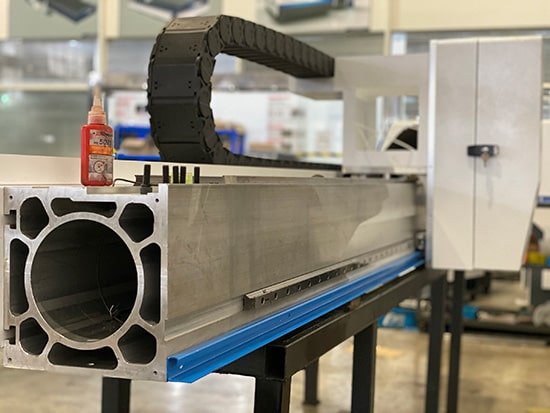

Aluminium Gantry Structure
The gantry is a monolithic structure made from a single aluminium casting. This technological solution is ideal for structures subjected to high levels of mechanical stress.
With the multi chambers high efficient system ofers the ability to make an equal amount ofsuction during the cutting operation of the whole machine cutting area.

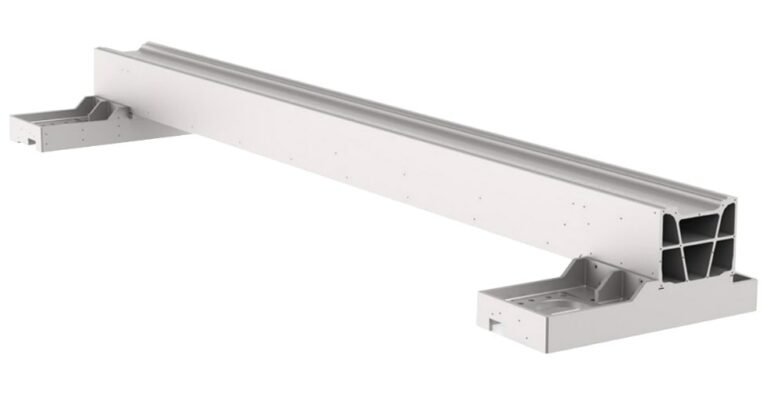

Cast Aluminium Gantry
ACCURL® high tech aluminium crossbeam is cast in a specially manufactured 10-tonne steel mould. this allows better rigidity at 50% of the weight of traditional iron gantries, allowing higher acceleration with reduced inertia.

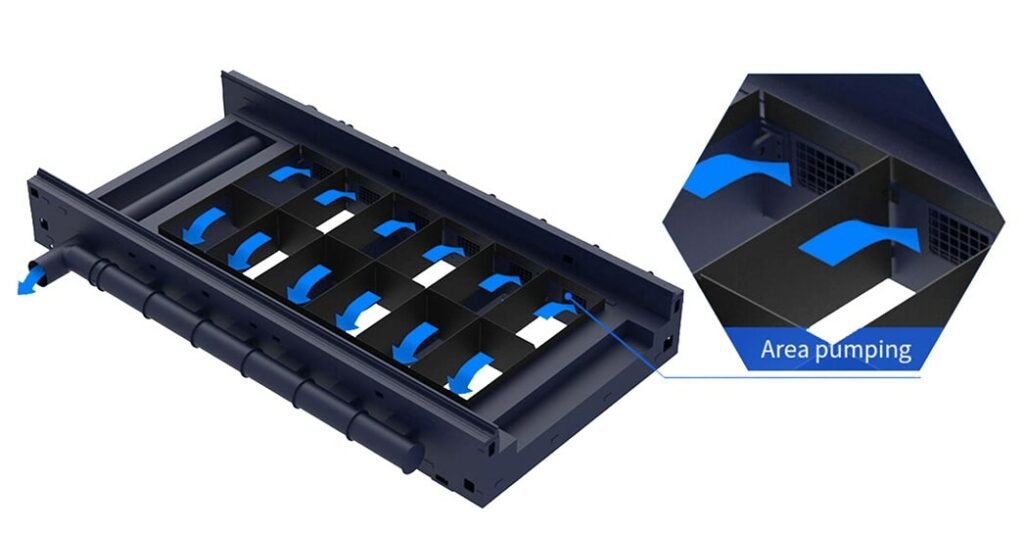

Fume Extraction System
Efficient fume extraction by means of shutters which are controlled in accordance with cutting head position results in more efficient use of the filtration system.
Auto Changing Pallet Table System
The double pallet changer is designed to increase the productivity and minimize the material preparation time. The pallet changer allows loading of raw material sheets or unloading of finished parts onto one pallet while the other pallet on duty.

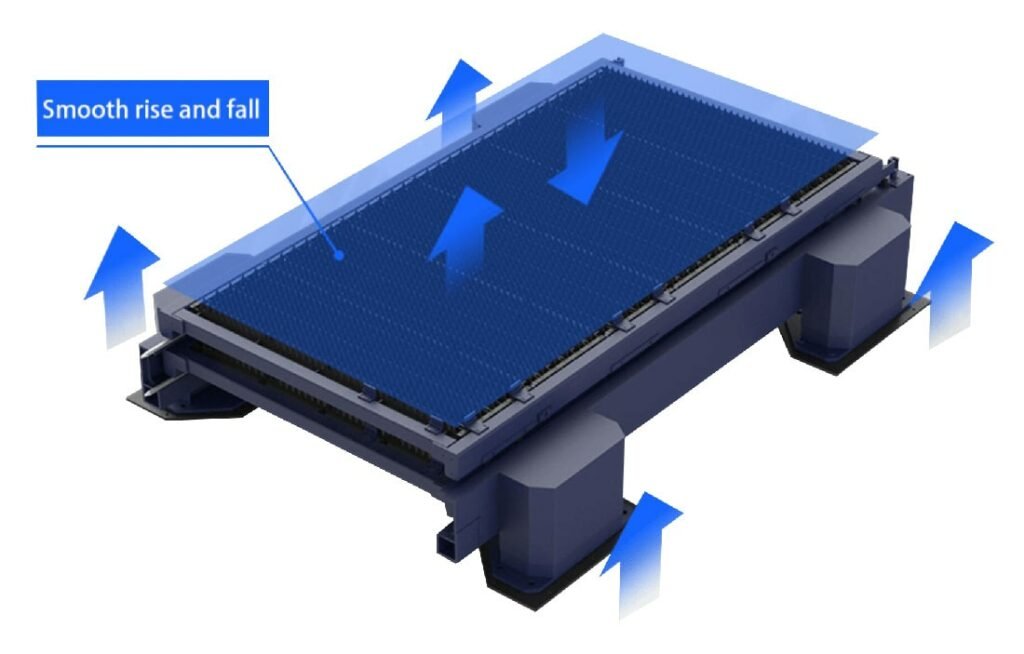

Auto Shuttle Table
The available shuttle tables on all machine models are fully electric and maintenance free: there are no hydraulic oils to handle and the table changes take place fast, smooth and energy-efficient..

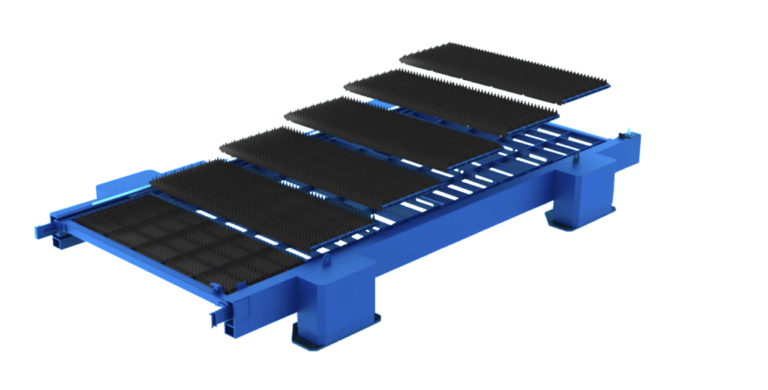

Modular Workbench
ACCURL Independent research and development of patented modular workbench, easy to disassemble, without hindering production, efficient and time-saving, safe maintenance.

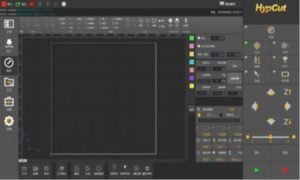

HypCut Numerical Control
The machine automation by Hypcut encompasses:drive technology,control systems,HMI, machine vision as well as seamless integration in TwinCAT Analytics based digital solutions for Industry 4.0.
HypCut Program Management
Multiple piercing solutions for metal sheet of different thickness; piercing slags removal; vibration suppression; close-loop gas control; seperate layer technique for large, medium and small contour cutting, all to expand your machine production capability.
