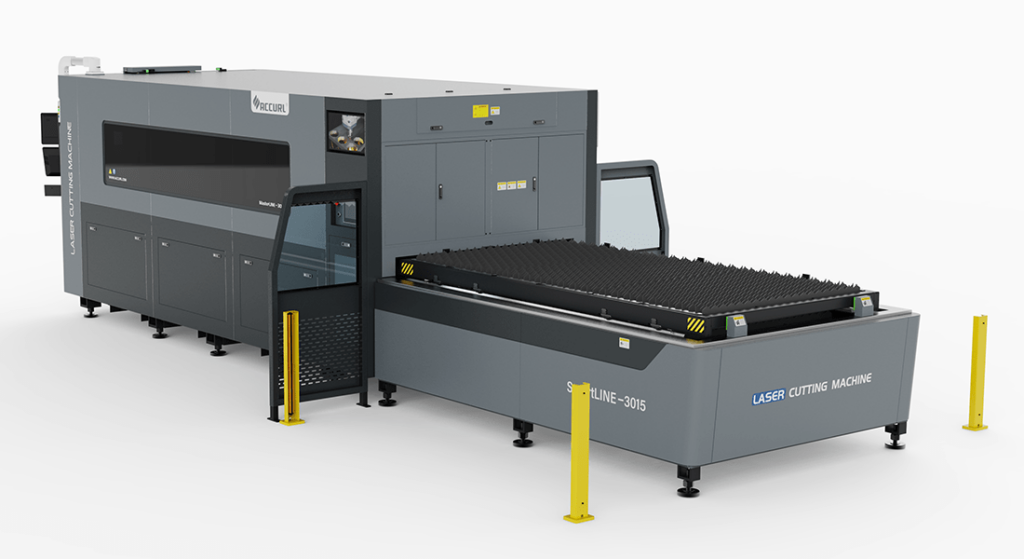

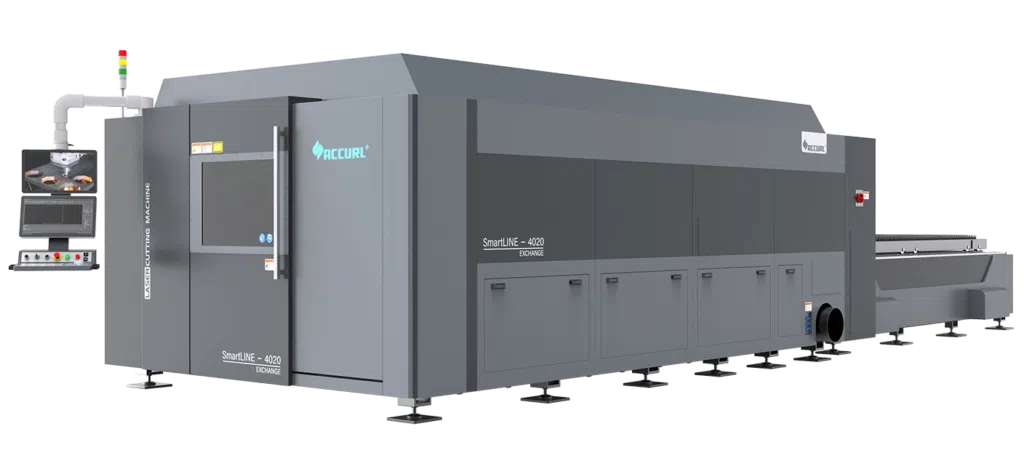

SmartLine 2Kw -4Kw Fiber Laser Machine
ACCURL
SmartLine 2Kw -4Kw Fiber Laser
Performance and technology for perfect sheet metal laser cutting.
ACCURL® Based on machinery design technology optimized through strict structural analysis, ACCURL has been manufacturing ultralight and high-precision industrial high energy laser cutting machines. In addition, we provide total solution for sheet metal working that customers want such as bending, welding, deburring, and loading automation.
SmartLine 2Kw -4Kw Fiber Laser
Includes Following Features And Configuration
Flexible
Reliable
Profitabie
User Friendly
Customer ERP connection
Importing of production list order from customer ERP.
Human Machine Interface
Interacting in an easy and friendly way, through touch screen, with the machine and relevant automation.
Production and Performance data Reporting
Proprietary solution for viewing reports of machine status and analyzing production data.
Cam programming / 2D Cam and Tube Cam
Efficient pogramming for a productive fabrication process:
• Powerful nesting .
• Optimized Post Processor for 2D cut programming and tube cut programming .
• Powerful simulation.
Monitoring / Production Control
Monitoring machine statuses and task lists and displaying all the events of all the machines in one view.
Jobshop 4.0 By Libellula
The system of performing and integrating software solutions to manage every metal sheet working phase in a productive and efficient way.
Compact and technological for outstanding performance
ACCURL® SmartLINE Packed with a host of easy-to-use features, the SmartLINE is the compact, versatile and productive 2D laser cutting machine for undisputed superior quality results. Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Also can optional Axis for round, square and rectangular tubes.
Flexible Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Ready for round, square and rectangular tubes.
Reliable Fully-tested and reliable thanks to the 20 years of experience with the MasterLINE platform.
Profitabie Low operating costs thanks to energy efficiencyand reduced maintenance.
User Friendly Single focusing lens system with automatic nozzle changer. Easy to use programming software and Accurl operator interface.
HYPCUT TwinCAT CONTROL UNIT:
The ACCURL SMART Cube Fiber Laser is controlled with a HypCut FSCUT 8000 CNC control unit which provides unprecedented control of the cutting process.
Advantage:
- 17” high resolution colour TFT
- High-speed EtherCAT communication
- TwinCAT: software for engineering and runtime
- Highly dynamic servo drive technology
- Integrated retention brake control.
- Automatic adaptation of parameters.
- Adjustable error reaction.
Successfully Controlling Precision
HypCut CNC controllers are used in laser cutting machine. And the TwinCAT NC I/CNC automation software is ideally suited for application-specific functions, including adaptive jet control, reverse travel or path resetting.
Successfully Controlling Precision
ACCURL® advocated its own new IoT technology as “Intelligent Internet of things factory”, termed the “Smart-Factory”.

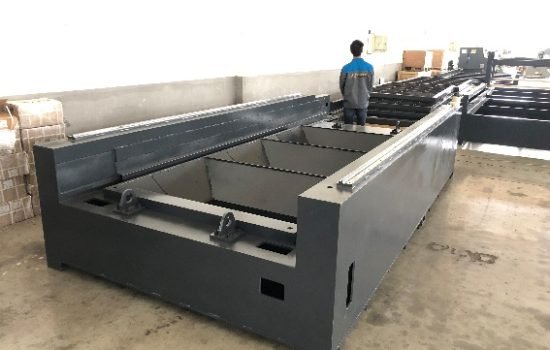

Robust Construction
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress, and they are built to last years of heavy use without distortion.
Advantage:
- Very stiff and stable base frame
- Deformation simulation made by CAE
- Stress points analysis
- Electric welding of high precision
- Usage of high-tech boring machines for extreme precision parts

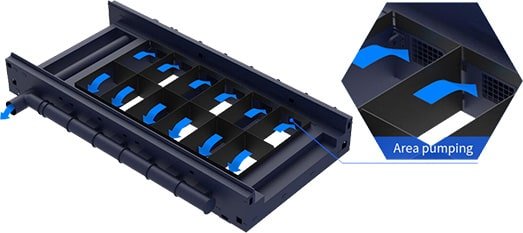

Fully Annealed Frame
Semi-hollow bed design, small heating area. The rear frame is more stable for better bearing capacity. To avoid deformation of the bed due to long-term high temperature, it provides a strong guarantee for users to achieve long-term batch and stable cutting of thick plates.

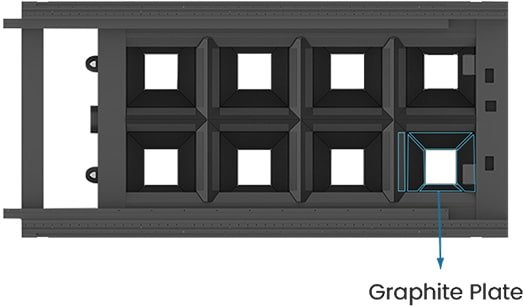

Graphite Anti-burn Technology
The area in the entire machine tool where the laser can shoot at is all covered and protected by 20mm thick graphite anti-burning To insuring the machine bed and working table not be out of shape and burned-out.
Accurl® Ultra Light-Weight Gantry Structure
ACCURL® Light-weight cutting head assembly (Total weight 130 lbs) is designed for high dynamic movement, lowering the Tool Center Point to keep the cutting head from losing accuracy that is caused by whipping or drifting during high speed accell/decell movement.

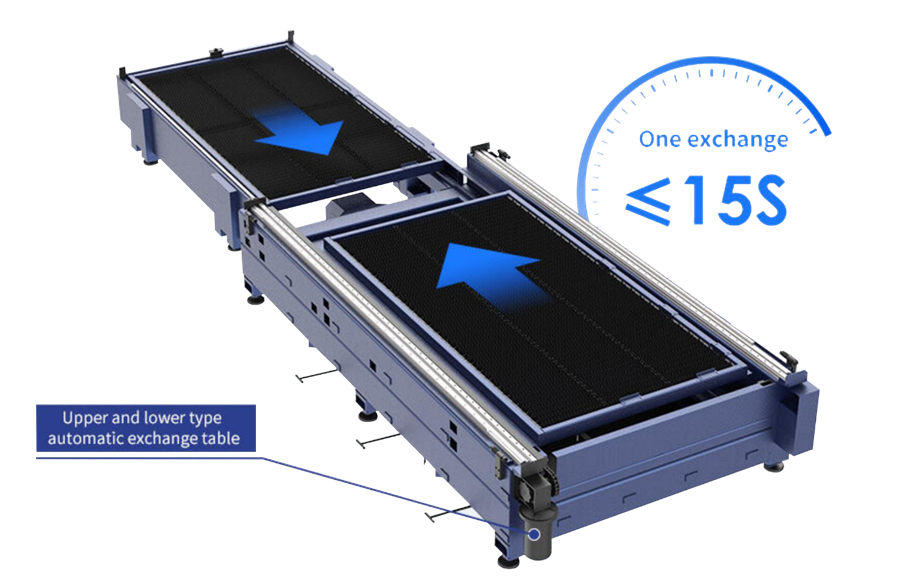

Motorized-automatic Exchange Table
Independent developed of high and low exchange table, simple and clever structure design, complete one exchange ≤15 seconds, efficient and save labor costs. The front of the motor is safe and anti-collision.

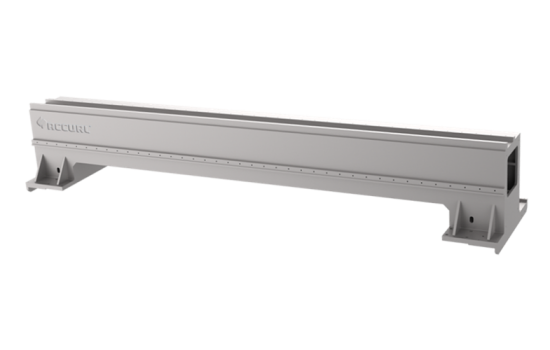

Cast Aluminium Gantry
ACCURL® high tech aluminium crossbeam is cast in a specially manufactured 10-tonne steel mold. This allows better rigidity at 50% of the weight of traditional iron gantries, allowing higher acceleration with reduced inertia.

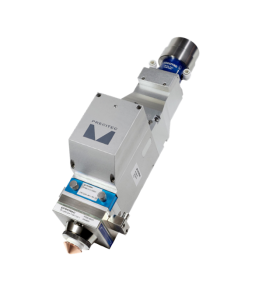

Precitec® laser Cutting Head
The Precitec offers high-quality tailor-made solutions for all requirements and machine concepts in 2D laser cutting and has gained worldwide recognition as the market leader in cutting optics, distance sensor technology, and process monitoring.
Laser Cutting In The Medium Power Range
The LightCutter is designed for high laser power. It is completely dust-tight, which guarantees a continuous, clean operation. The basis for clean cut edges is provided by the ultra-stable and drift-free sensor technology for a constant distance between component and optics.
SmartLINE Series Laser
BEST QUALITY, High accuracy and productivity without compromises on the whole thickness range
thanks to the Best integration of all machine components.

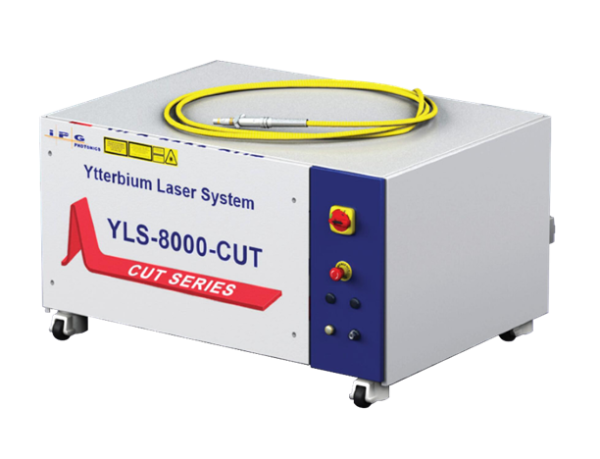

Fiber Laser Resonator IPG
IPG offers laser sources that implement fiber laser diodes to create at high brilliance laser light. and the reduced energy consumption and the absence of ordinary maintenance significantly improves the efἀciency of the fiber laser as opposed to traditional CO2 laser systems.
This advanced technology ensures very competitive operating costs. In accordance with our company ethos to design the most flexible and reliable machines on the market, the ACCURL Fiber machine includes an integrated IPG fiber laser source.
Features of the IPG equipment are as follows:
- Direct control of all the fiber laser functions
- Synchronized control of the laser source
- Overall power control
- High speed perforation
- Edge machining function
- Cutting data library
- High speed fiber laser cutting
