Closed switched 1000W-20000W fiber laser cutting machine
LIANGJI
closed Series | 1000W-20000W closed switched fiber laser cutting machine
Unmatched Safety, Dual-Platform Efficiency, and Precision at Full Power

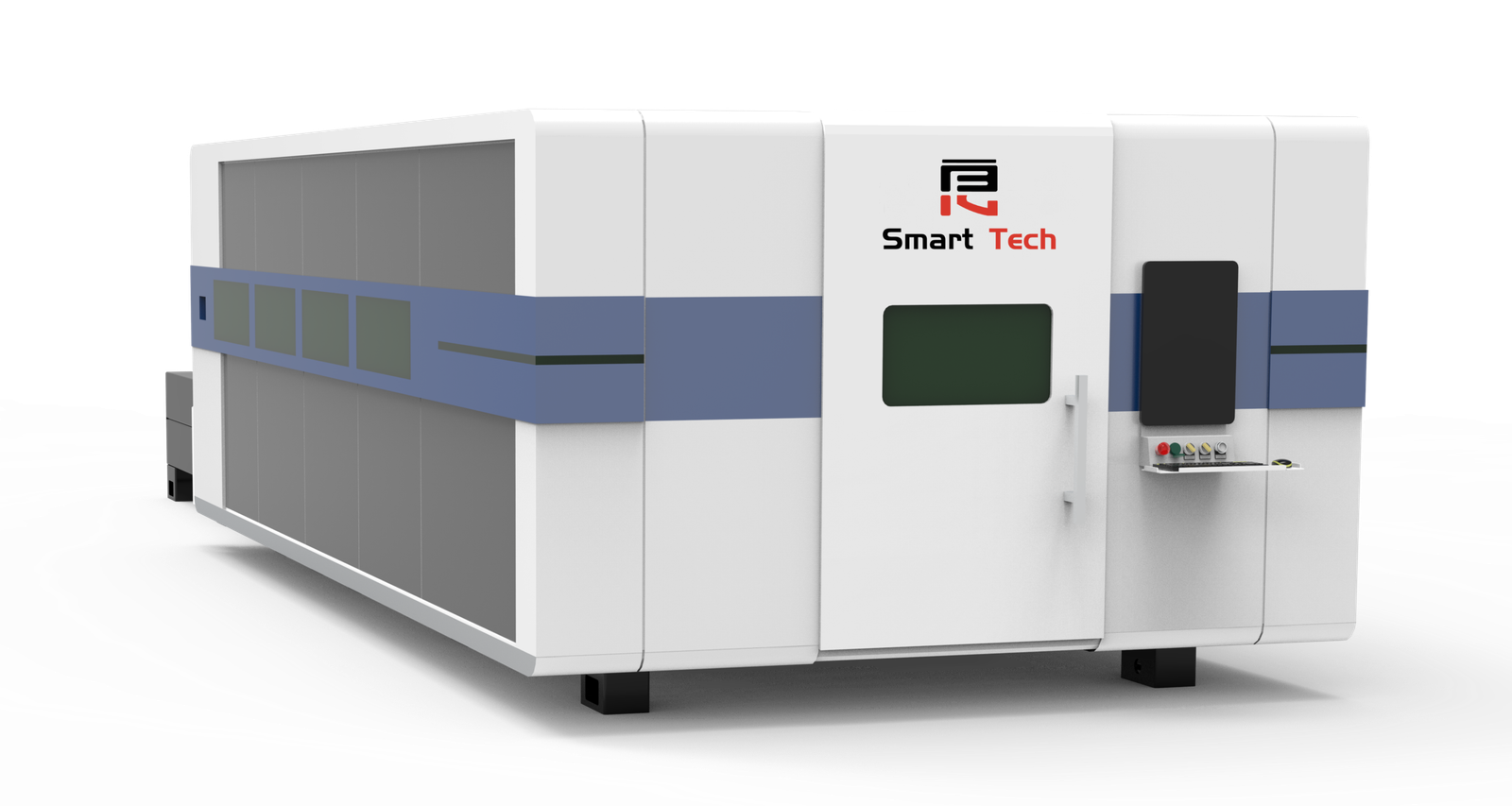

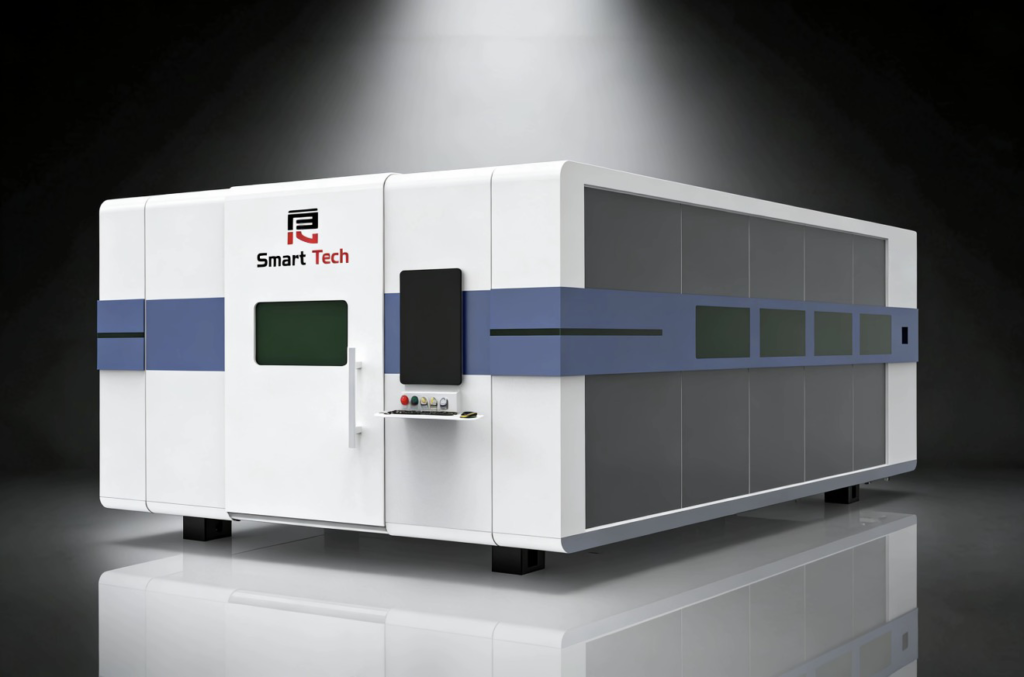

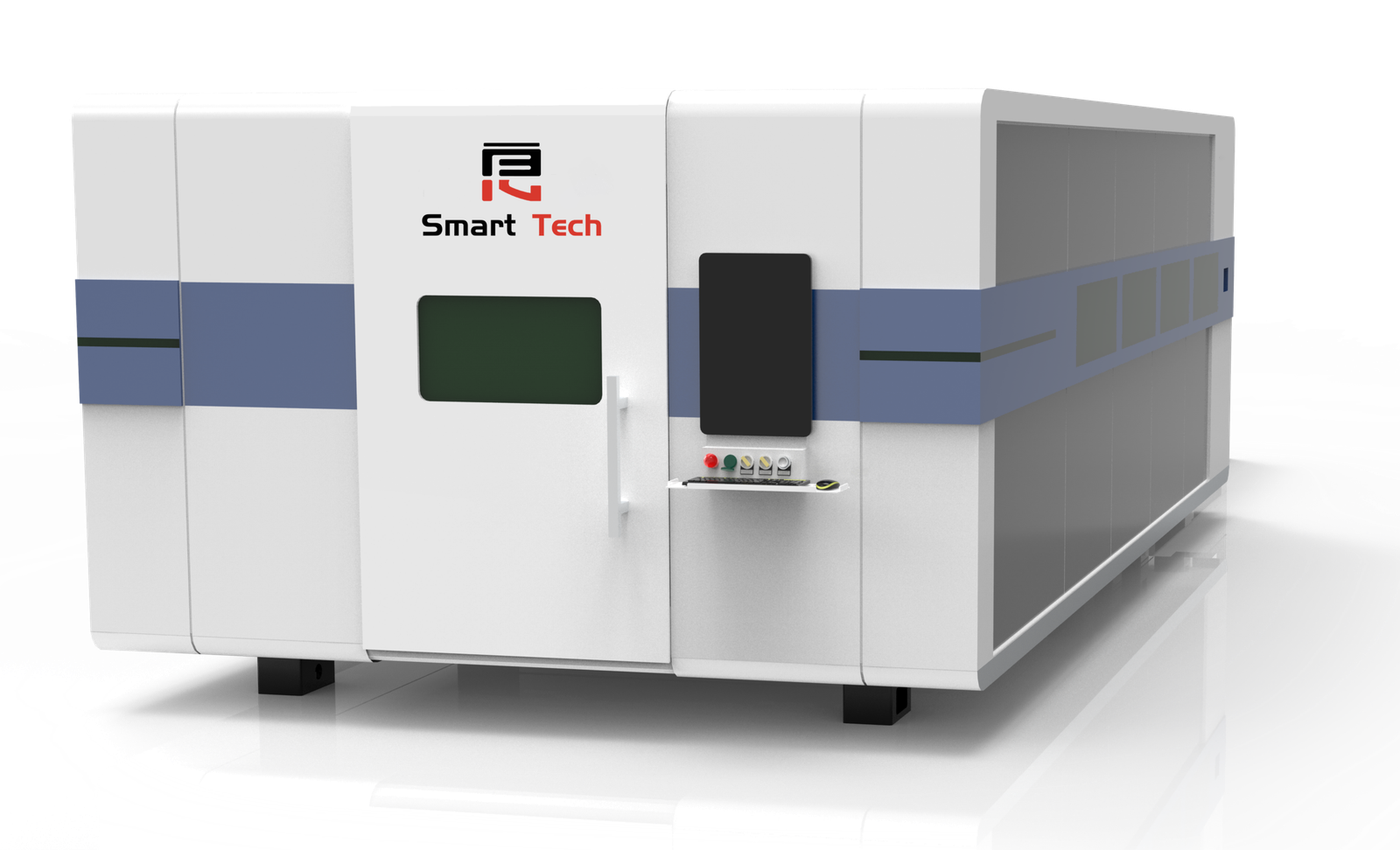

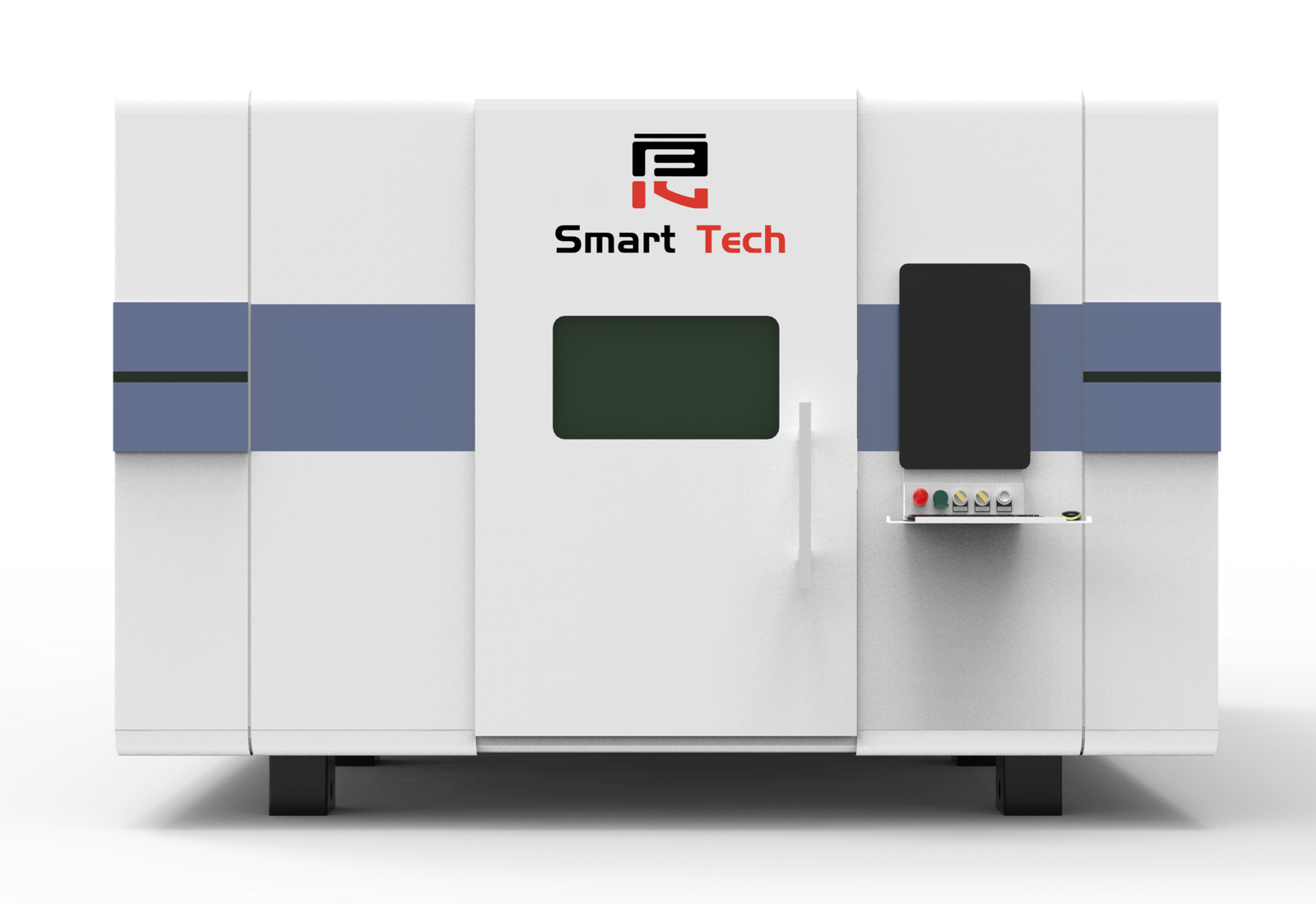

This Fully Enclosed Exchange Table Laser Cutting Machine is an industrial powerhouse designed to maximize productivity while ensuring total operator safety. By combining a fully enclosed protective cover that isolates laser radiation and dust with a high-speed dual-exchange table that swaps workpieces in just 15 seconds, it eliminates production downtime and creates a clean, eco-friendly workspace. Built on a heavy-duty, stress-relieved steel bed and powered by a high-precision numerical control system, it delivers micron-level accuracy and long-term stability, allowing even entry-level operators to achieve professional-grade results on complex metal fabrication projects with ease.
LIANGJI closed Series

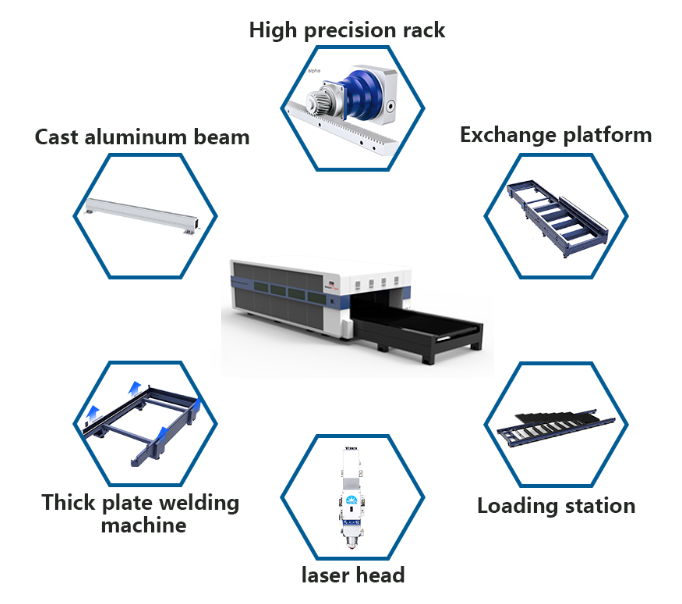

Includes Following Features And Configuration
Dual-Platform Efficiency
Total Operator Safety
Industrial-Grade Precision
Stress-Relieved Stability
Smart One-Touch Control
Technical Specifications
Performance
| Type of cooling | Water Cooling |
| Exchange System | Dual Interactive Workbench |
| X/Y axis positioning accuracy | ±0,05 mm |
| X/Y axis repeated positioning accuracy | ±0,02 mm |
Working capacity
| Laser Power | 1000W-20000W |
| Worktable Size | 2000mm x 4000mm / 2000mm x 6000mm |
LIANGJI Industrial Machine Bed
- Mortise & Tenon Architecture: Combines traditional mechanical interlocking with integrated welding for superior load-bearing strength.
- Precision FEA Engineering: Optimized through Finite Element Analysis to reach the perfect balance of structural force and stability.
- Thermal Aging Treatment: Comprehensive stress relief process to eliminate internal welding tension, ensuring long-term zero deformation.
- Rock-Solid Stability: Engineered for high-speed dynamic performance with a maintenance-free lifecycle.
yaskawa servo motor
- Ultra-High Response: 3.1kHz frequency response for flawless high-speed precision in complex paths.
- Tuning-Less Technology: Automatically adapts to load changes and suppresses vibrations for smooth operation.
- 24-bit Absolute Encoder: Delivers micron-level positioning and unmatched motion smoothness.
- High Overload Capacity: Supports up to 300% instantaneous torque, ideal for rapid start-stop cycles.
- Global Reputation: Renowned Japanese reliability with worldwide technical support and parts availability.
Compact and technological for outstanding performance
ACCURL® SMART Cube Packed with a host of easy-to-use features, the SMART Cube is the compact, versatile and productive 2D laser cutting machine for undisputed superior quality results. Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Also can optional Axis for round, square and rectangular tubes.
This Fully Enclosed Exchange Table Laser Cutting Machine is an exceptionally all-in-one industrial powerhouse that redefines versatility and production safety. Beyond its heavy-duty enclosed design, it is capable of high-precision processing for a vast array of materials—including carbon steel, stainless steel, copper, and aluminum—and can seamlessly handle complex profiles like round, oval, and rectangular pipes, as well as H-beams, I-beams, angles, and channels. From shipbuilding and marine engineering to oil pipelines and steel structures, this single device replaces multiple traditional tools, offering a truly integrated solution for the most demanding pipe and profile processing industries.
CYPCUT CNC System Features:
- 22” high resolution color TFT(Optional touch screen control)
- Highly dynamic servo drive technology
- Integrated retention brake control.
- Automatic adaptation of parameters.
- Adjustable error reaction.
- Motor feedback for absolute position registration.
- The same set of software support pipe cutting and flat cutting, the same programming; Support the intersecting line cutting.
