Guillotine Series | CNC Guillotine Shearing Machine
High-precision hydraulic power for effortless, heavy-duty metal shearing

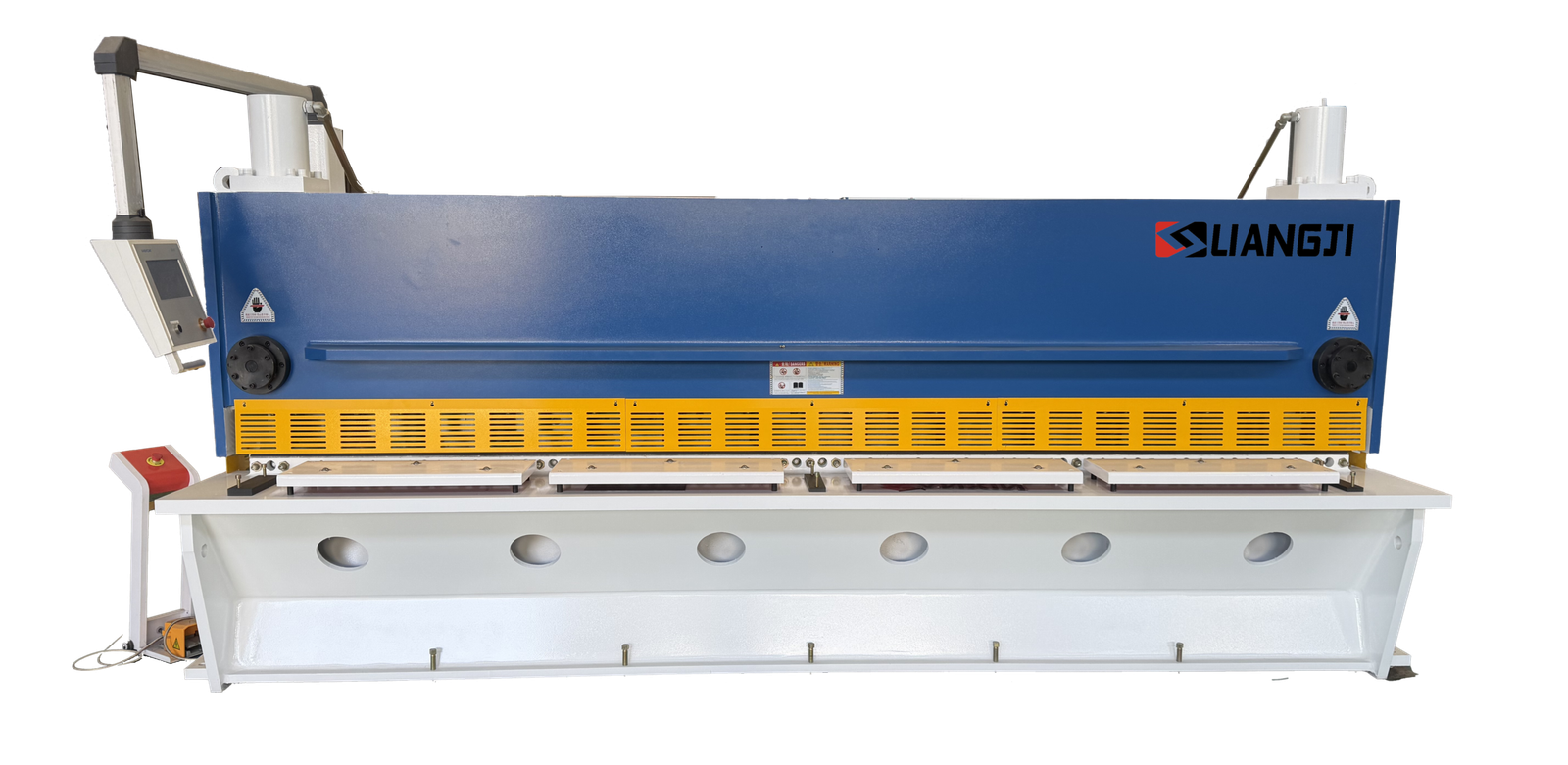

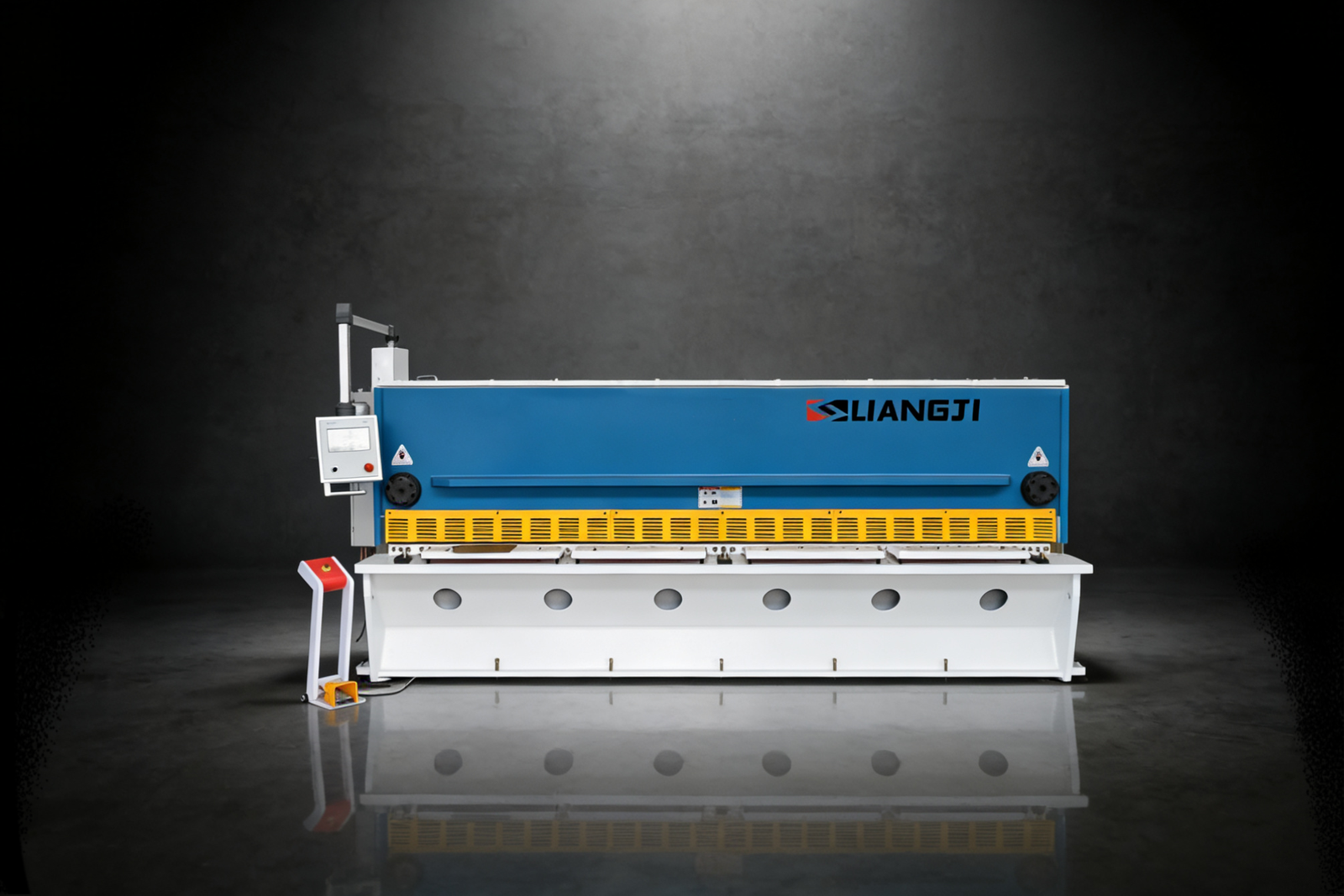

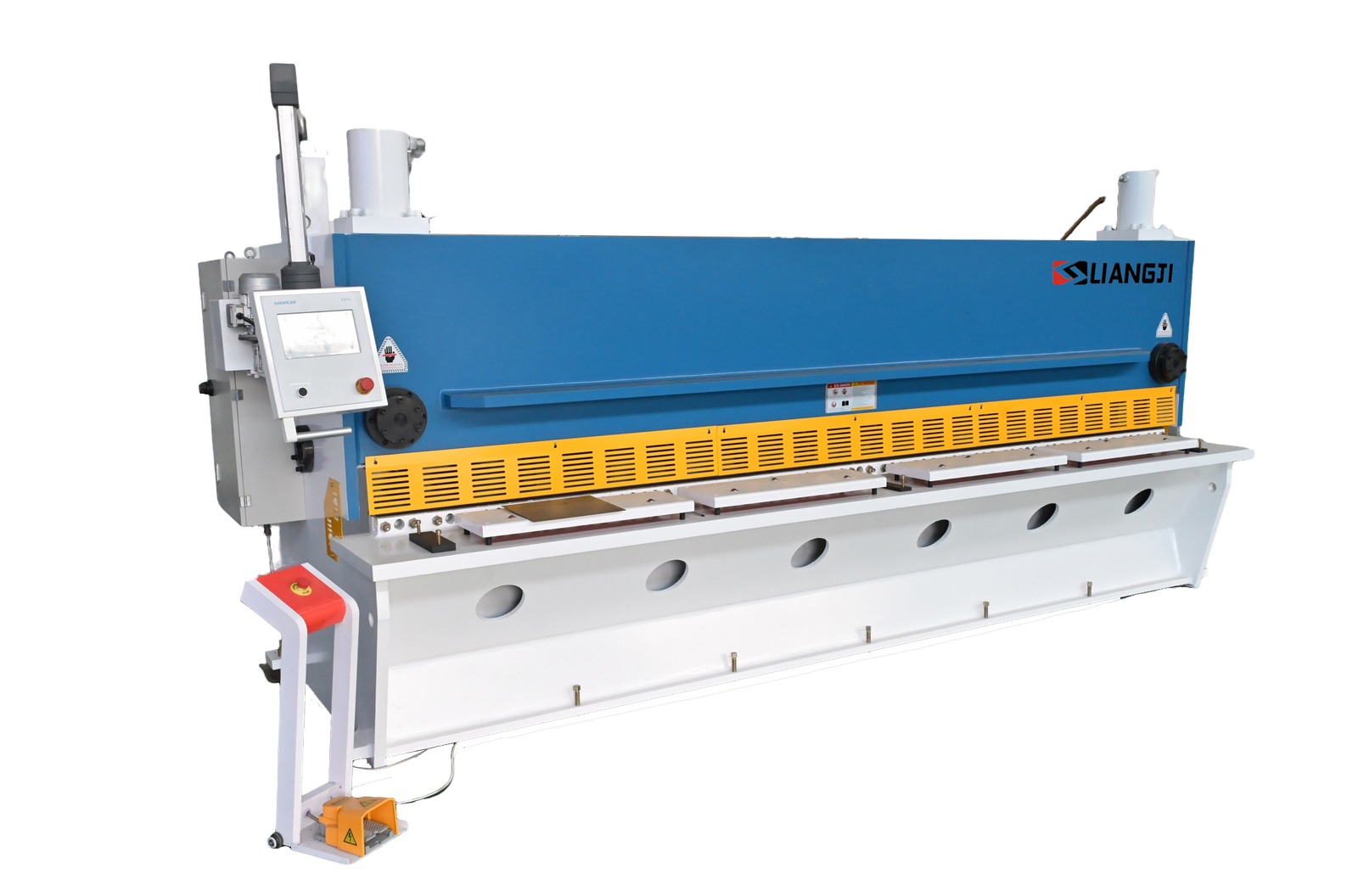

LIANGJI QC11K Hydraulic Guillotine Shearing Machine is a heavy-duty powerhouse engineered for high-precision metal processing. Featuring an advanced variable rake angle design and a rigid frame construction, it ensures minimal plate distortion and superior cutting accuracy across various thicknesses.
Equipped with user-friendly E21S or DAC-360T CNC systems, it delivers consistent, burr-free results for high-volume industrial fabrication. Its combination of hydraulic power and durable engineering makes it the ideal choice where speed and long-term reliability are paramount.
LIANGJI Guillotine Series
Includes Following Features And Configuration
Precision Rake Adjustment
Heavy-Duty Rigid Frame
Burr-Free Cutting Results
CNC-Driven Performance
Standard
Equipment
- Main Frame: Heavy-duty Interlocked Welded Structure (Vibration stress-relieved)
- Hydraulic System: Professional Rexroth / Hoerbiger Integrated Valves
- Cutting Blades: High-strength 6CrW2Si / Cr12MoV (4-cutting edges)
- CNC System: Standard EASYCAT ES10 (Optional: DAC-360T / DAC-310T)
- Backgauge: High-precision Ball Screw & Linear Guide (Servo driven)
- Electric System: Schneider / Siemens Low-voltage Components
- Pneumatic System: SMC / AirTAC Support for Thin Plate Processing
- Safety System: Front Finger Protection & Rear Light Curtain / CE Guarding
- Hold-downs: Independent Hydraulic Clamping Units (Prevent plate slippage)
- Blade Gap: Manual / Motorized Quick Adjustment (Handwheel/CNC)
EASYCAT ES10 CNC System
- Automatic Calculation: Just input the plate thickness and material type; the system automatically calculates the optimal blade gap and shearing angle.
- High-Speed Servo Control: Supports X-axis (Backgauge) servo drive, providing rapid positioning and superior cutting consistency.
- Massive Program Memory: Stores up to 100 programs with 25 steps each, making it perfect for diverse, high-volume production.
- Smart Retract Function: Automatically moves the backgauge away during the stroke to prevent plate jamming and tool wear.
- Diagnostic Tools: Built-in real-time monitoring and alarm history for simplified maintenance and troubleshooting.
Ultra-Rigid Machine Bed
- Monoblock Structure: Interlocked welded frame for maximum rigidity and stability.
- Vibration Stress Relief: Heat-treated to eliminate internal stress and prevent long-term deformation.
- High Load Resistance: Robust design engineered to handle high-pressure shearing without flexing.
- Precision Foundation: Ensures micron-level blade alignment and consistent cutting accuracy.
Blade Clearance Control
- Quick Adjustment: Motorized or manual gap setting for different plate thicknesses.
- Optimal Cutting Quality: Ensures clean, burr-free edges by maintaining the perfect clearance.
- Blade Protection: Prevents premature wear or collision through precise gap control.
- Material Versatility: Easily adjusts to handle everything from thin sheets to heavy plates.
Backgauge Linear & Screw Motion Kit
- Precision Driving: High-precision ball screw for smooth and accurate backgauge positioning.
- Stable Guidance: Dual linear guide rails ensure high rigidity and minimal vibration during movement.
- High-Speed Response: Optimized transmission system for rapid and reliable axis displacement.
- Long-Term Durability: Wear-resistant components designed for heavy-duty, maintenance-free operation.
Smart Electrical Enclosure
- Integrated Design: Dust-proof and anti-interference layout for stable operation.
- Schneider Components: Equipped with world-class electronics for long-term reliability.
- Thermostatic Cooling: Built-in industrial air conditioner to prevent overheating.
- Safety Protection: Overload and short-circuit protection to ensure equipment safety.
