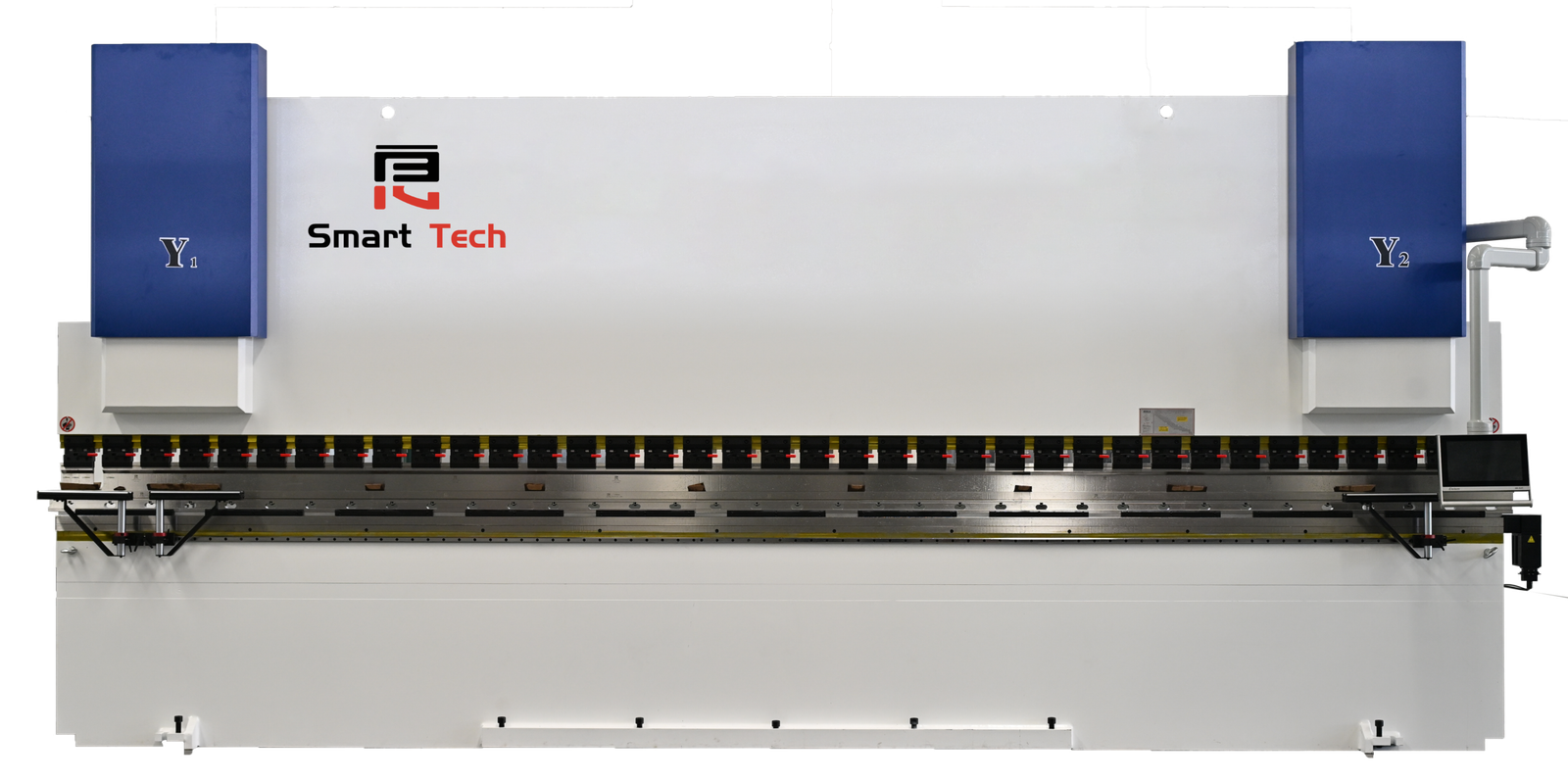

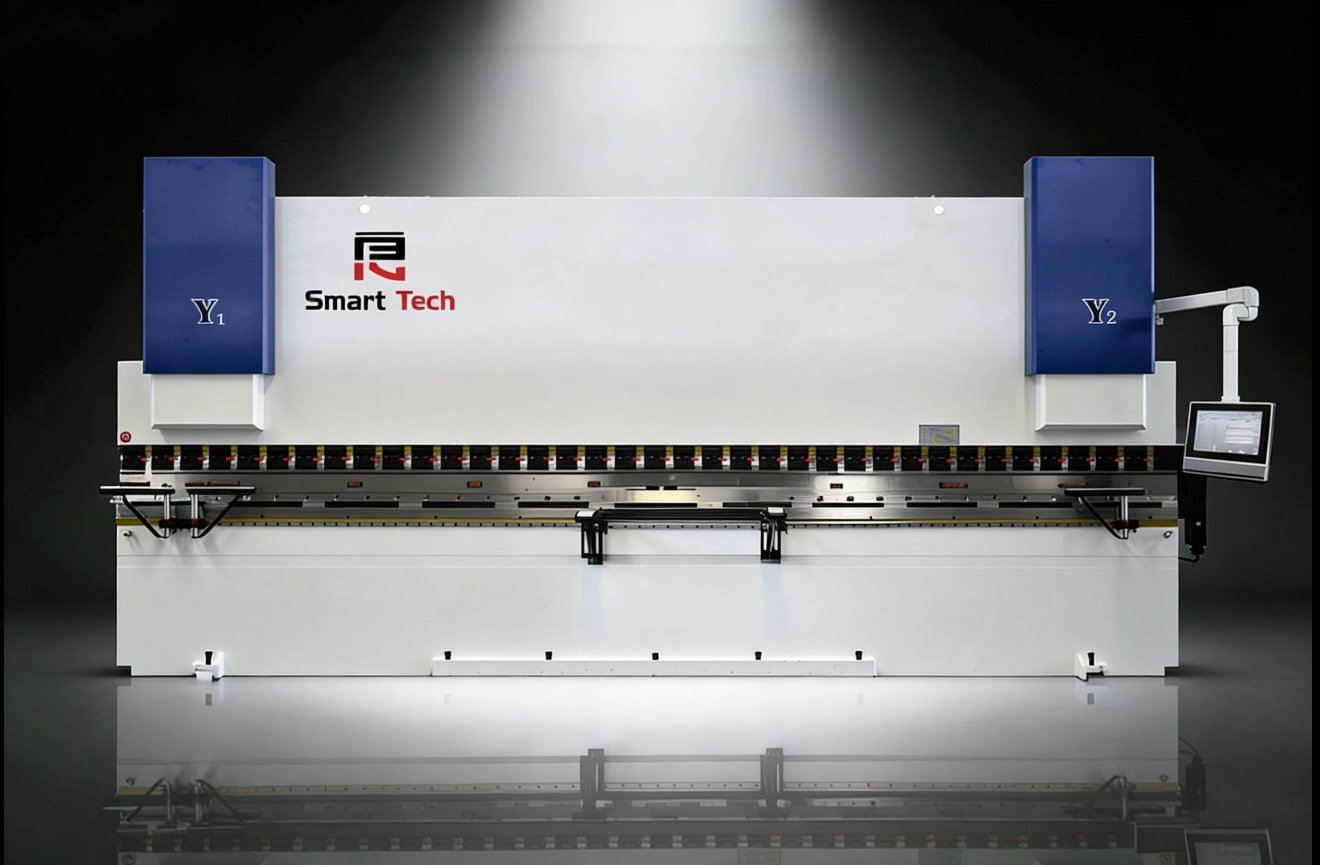

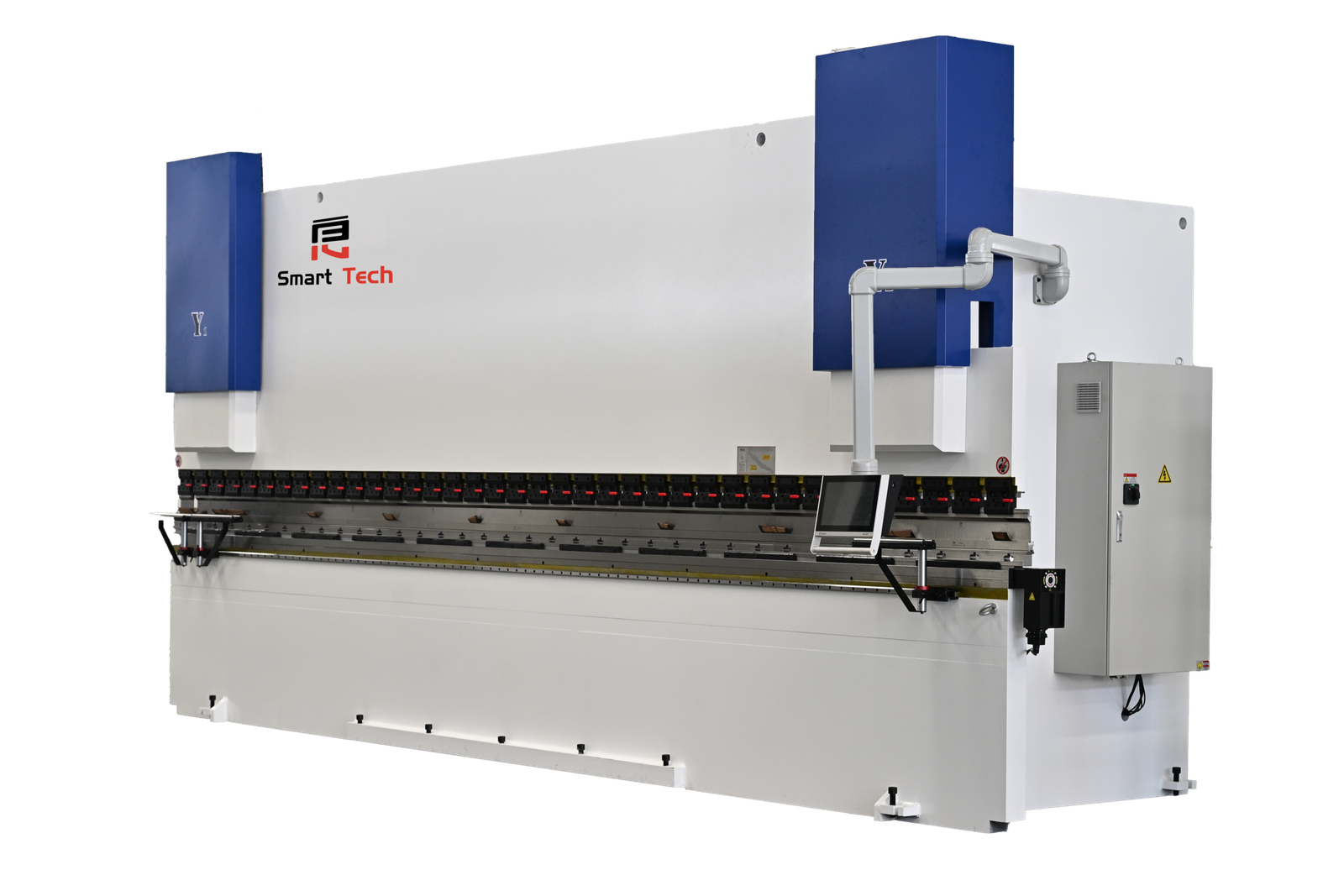

TITAN Series | Heavy Duty Electro-Hydraulic CNC Press Brake
Large Hydraulic Press Brake for LIANGJI® Titan: Engineering the Future of Heavy-Duty Bending
The LIANGJI® Titan Series represents a monumental leap in heavy-duty bending technology, specifically developed to dominate the most grueling fabrication environments. Forging a path where massive scale meets surgical precision, these machines offer a formidable range of bending lengths from 4 to 12 meters and an unstoppable force capacity spanning 400 to 2000 tons. Every Titan unit is anchored by a sophisticated, deep-reinforced frame architecture and an intelligent dual-beam crowning system, engineered to eliminate deflection and guarantee flawless accuracy across the most demanding workpieces.
Beyond its raw physical capabilities, the LIANGJI® Heavy Duty line has earned its global reputation by offering an unrivaled balance of premium performance and logistical speed. We have streamlined the entire ownership experience, from accelerated lead times and rapid on-site deployment to a vast ecosystem of high-end modular upgrades. For manufacturers who refuse to compromise, the Titan Series is more than a press brake—it is a high-performance investment in reliability, innovative engineering, and superior production quality.
LIANGJI TITAN Series
Includes Following Features And Configuration
Industry 4.0 Ready
New Design

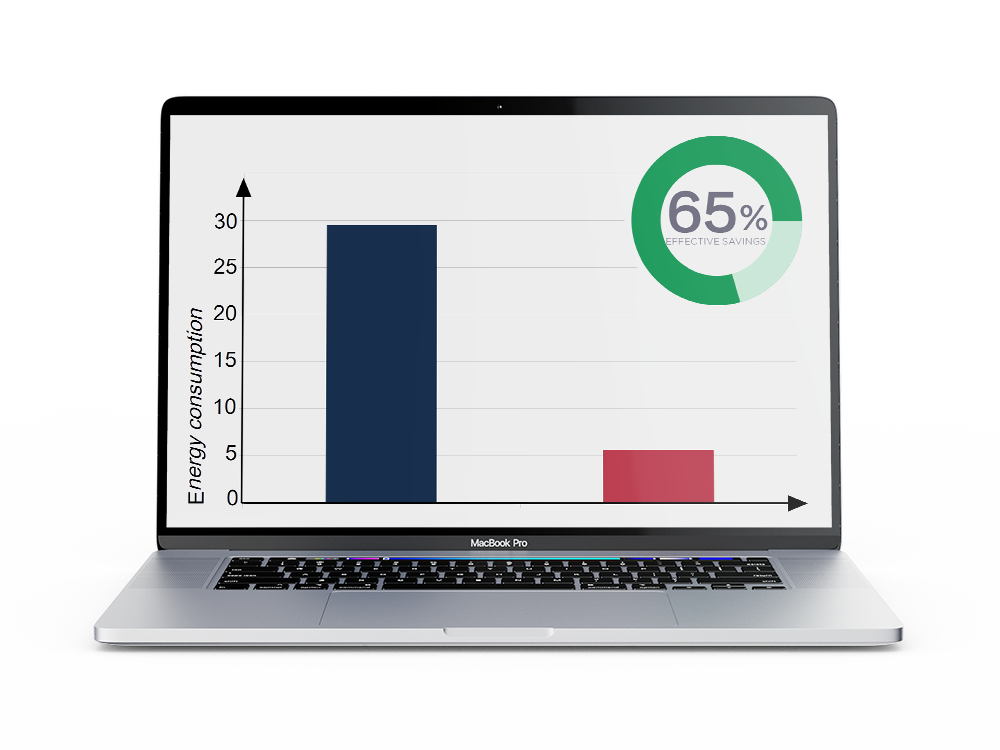

Green Hybrid Servo
High Performances
Environmentally Friendly
Quiet Operation
Standard
Equipment

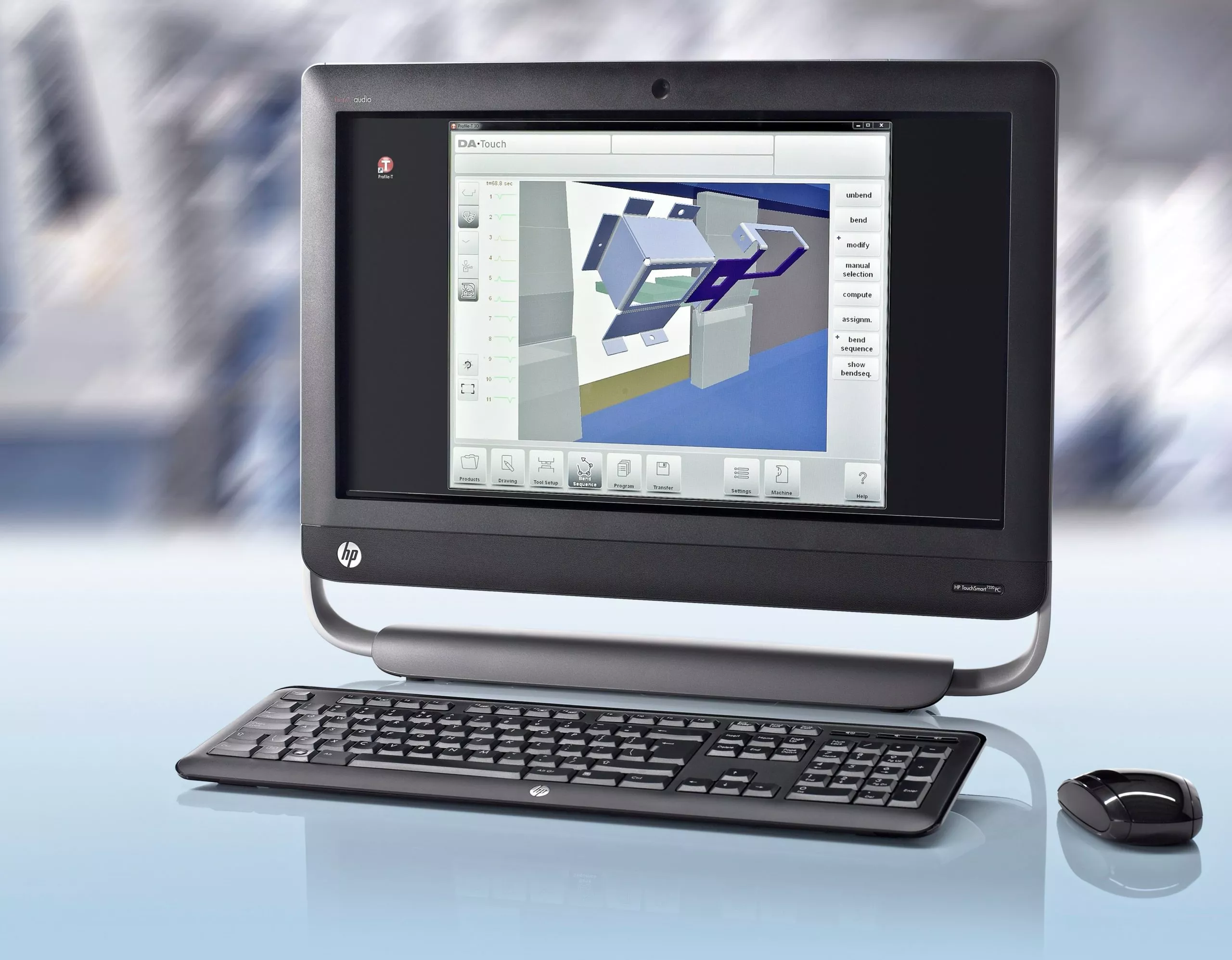

- CNC Controller: Spectrum SCS920 8+1 Axis intuitive control system

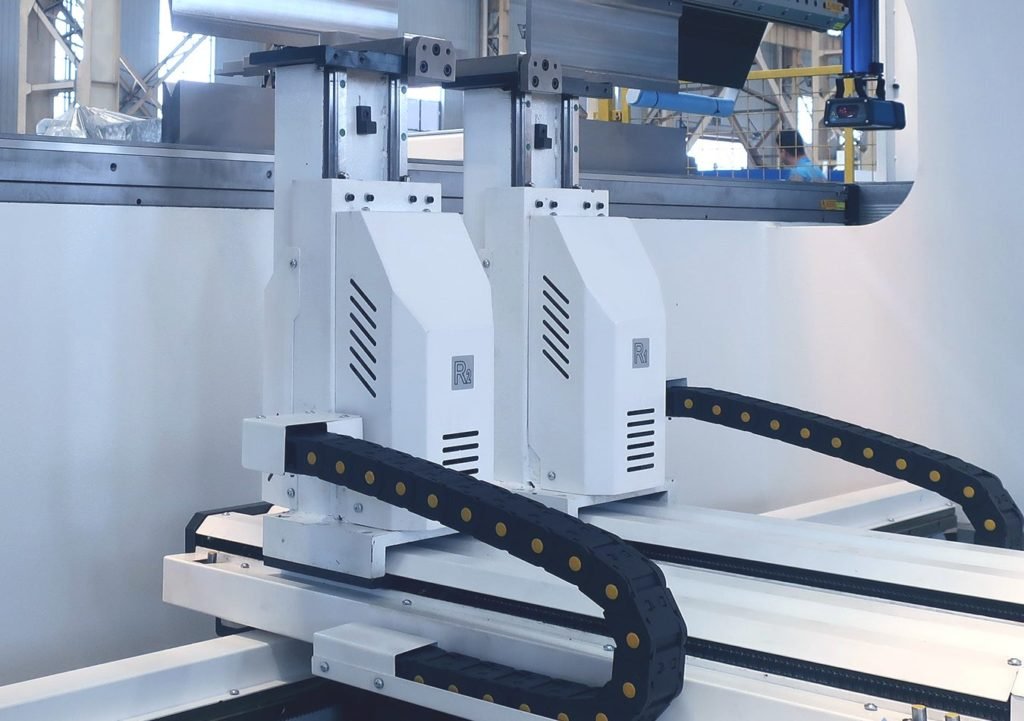

- Backgauge System: Fully synchronized Y1, Y2, X1, X2, R1, R2, Z1, Z2 + V-Axis (CNC Mechanical Crowning) for ultimate bending flexibility
- Hydraulics: Equipped with a German Bosch Rexroth manifold block for world-class reliability
- Frame Processing: Tempered ram and backgauge beam, fully machined by heavy-duty floor-type boring mill
- Linear Scales: Italian GIVI high-precision closed-loop feedback system
- Linear Motion: HIWIN or TBI (Taiwan) high-precision ball screws and linear guides
- Drive System: Premium Nanjing Estun servo motors
- Sealing Technology: Top-tier SKF (Sweden) and NOK (Japan) sealing rings
- Cylinders: High-durability Jianhu Huaxing oil cylinders
- Electrical cabinet with Schneider, Siemens components
- Laser Safety Device
FEA & Stress Analysis
Engineered using advanced SOLIDWORKS CAE, every LIANGJI machine frame undergoes rigorous Finite Element Analysis. By simulating complex stress and heavy loads, we guarantee maximum structural rigidity and zero deformation over years of operation.
Ultimate Structural Rigidity
Vibratory Stress Relief & High-Temperature Furnace Tempering
Built for decades of heavy-duty operation. Every LIANGJI machine frame undergoes advanced Vibratory Stress Relief (VSR) to eliminate internal welding stresses. Combined with a strictly tempered ram, this dual-treatment guarantees lifetime dimensional stability, zero deformation, and consistent bending precision.
Precision Anti-Deflection Tempered Plate
· Strategic Placement: Installed beneath the ram to directly absorb stress.
· High-Temperature Tempered: Exceptional rigidity and wear resistance.
· Deform-Resistant: Effectively minimizes ram deflection under heavy loads.
· Extended Lifespan: Protects critical surfaces, reducing maintenance costs.
IGreen SmartLink bus control
- Extreme Synchronization & Anti-Eccentric Loading: Microsecond-level synchronization of independent dual servo motors ensures the ram remains perfectly level even under eccentric bending loads, effectively protecting the machine frame from stress damage.
- Zero-Attenuation Digital Transmission: Pure digital network protocols transmit commands at microsecond speeds, completely eliminating analog signal interference and ensuring absolute signal integrity and high control precision.
- Simplified Wiring & Ultra-Low Failure Rate: Connecting all servo motors, sensors, and magnetic scales via high-speed industrial Ethernet cables drastically simplifies the complex electrical layout, leading to a significant drop in electrical failure rates.
- Powerful Automation Scalability: The high-speed bus architecture allows peripheral devices, such as multi-axis CNC backgauges and robotic loading arms, to be connected via a single network cable for seamless “plug-and-play” integration, making future automation upgrades effortless.
CNC Mechanical Crowning System
- Erfect Angles Every Time: The CNC-controlled crowning motor automatically adjusts the lower table’s wedge system to compensate for frame deflection during heavy bending.
- Consistent Precision: Ensures the bending angle remains absolutely identical across the entire length of the sheet metal, eliminating the “canoe” effect.

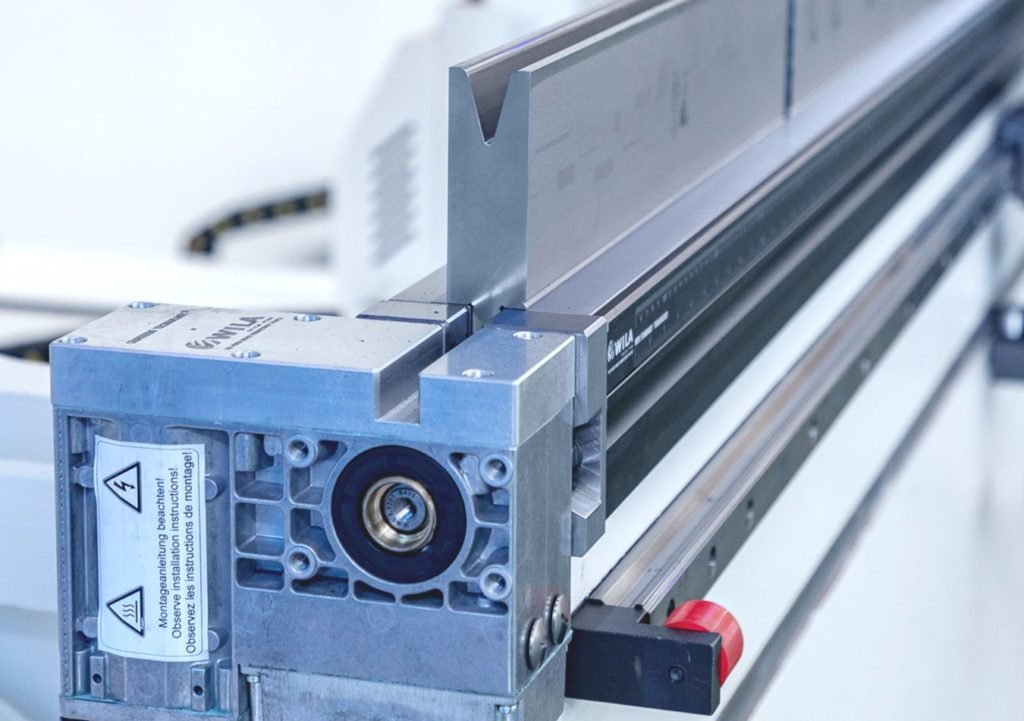

High-Precision Tooling Configuration
- Fast Clamps: Ergonomic red levers for rapid, wrench-free upper tool changes.
- Standard Tooling Setup: Equipped with a 150mm height upper punch and a V8/V12 double-V lower die.
- Anti-Rust Treatment: Sandblasted and black-oxide treated to ensure exceptional corrosion resistance and longevity.
- Bespoke Tooling Solutions: Fully customizable punches and dies manufactured strictly according to your specific bending requirements or technical drawings.
- Extreme Durability: Hardened tool steel ensures precise bending on tough materials.
