Electro-Hydraulic CNC Press Brake- 4-6+1 Axis
LIANGJI

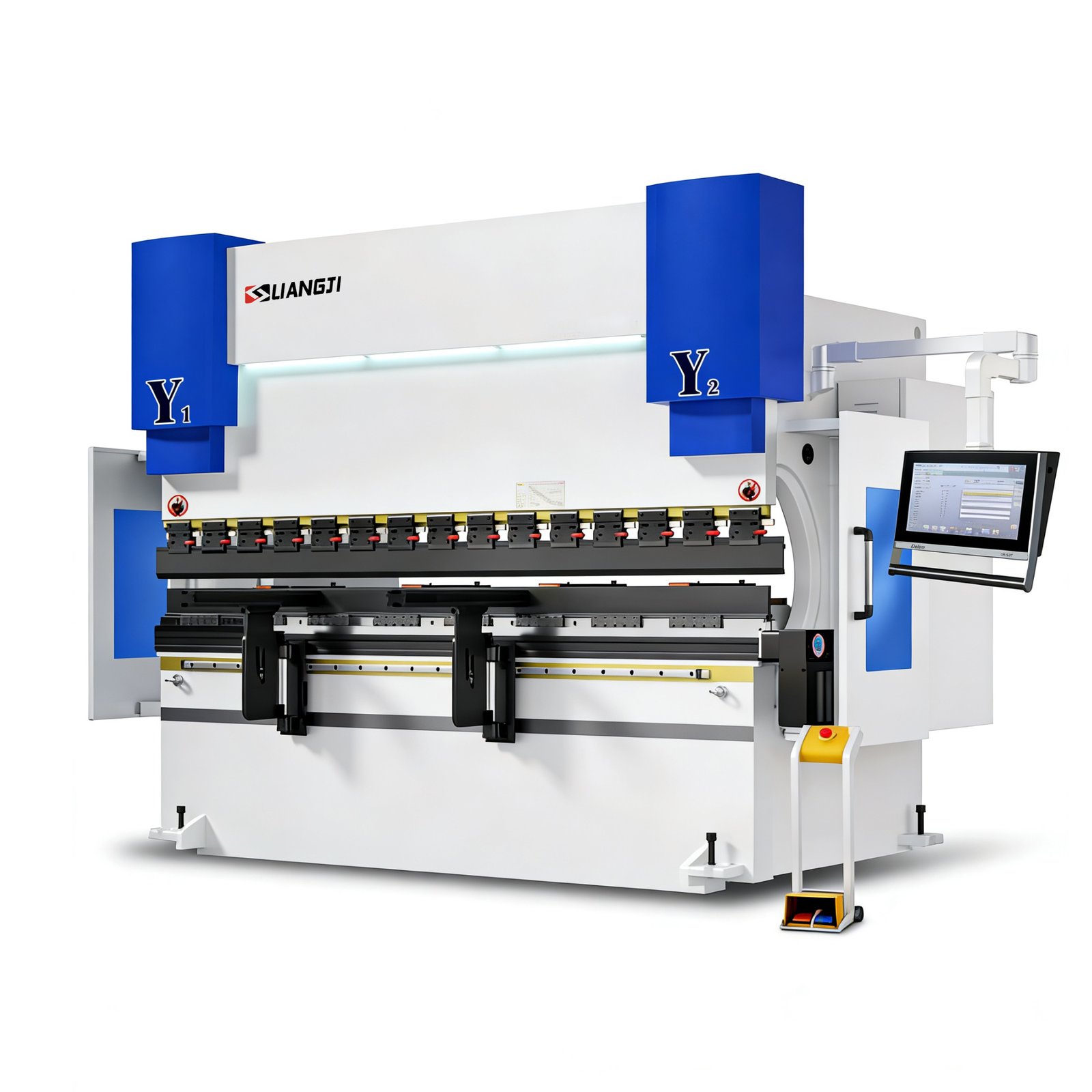

Performance Series | 4-6+1 Axis Electro-Hydraulic CNC Press Brake
The Ultimate Balance of Industrial Precision and Cost-Efficiency

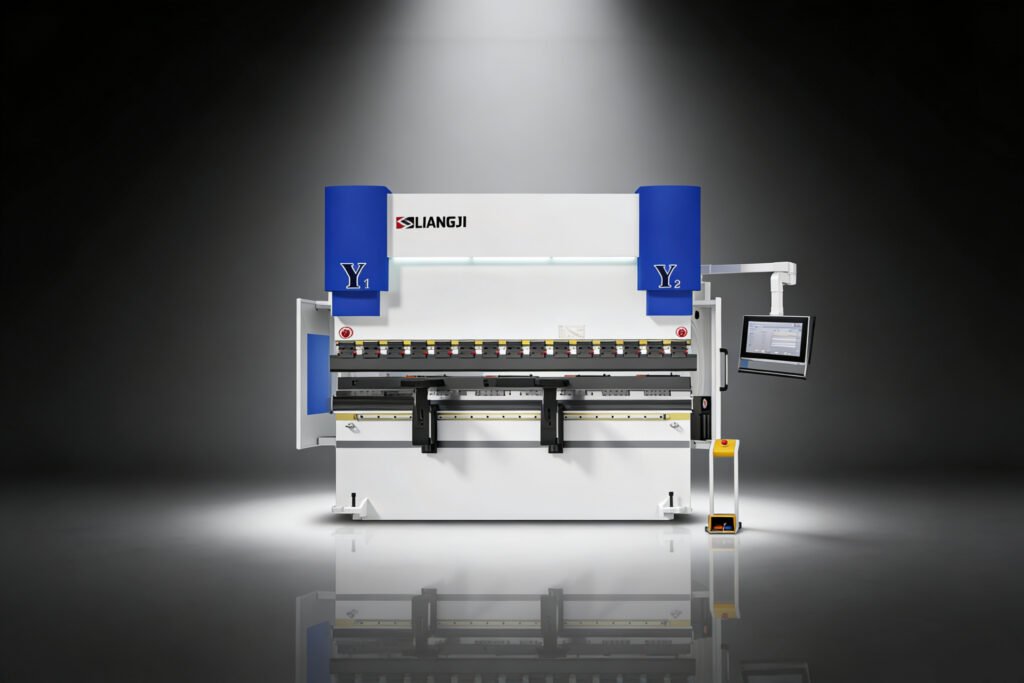

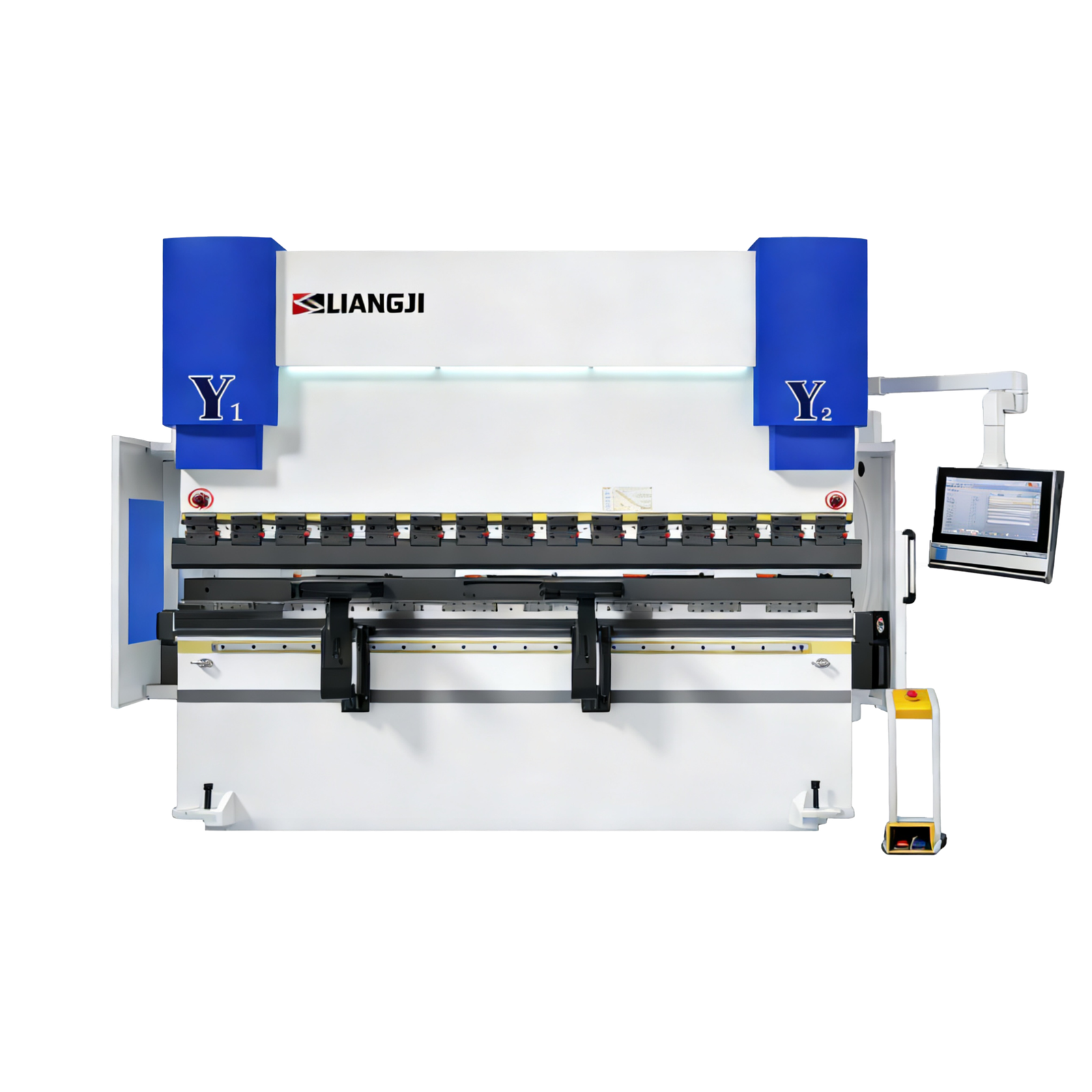

LIANGJI Performance Series is a robust and highly versatile 4-6+1 axis electro-hydraulic CNC press brake, engineered with an impressive array of high-end features and customization options.

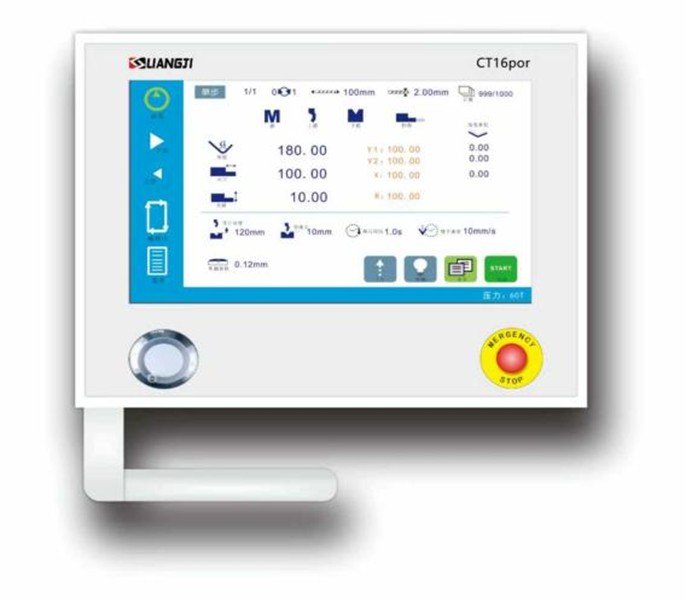

Delivering competitive pricing without sacrificing heavy-duty reliability, it comes standard with the intuitive CT16pro (4+1 Axis) or the advanced DELEM DA53T 2D graphical controls. Customers can also easily upgrade to the DE69T/58TX system for full 6+1 axis servo-driven precision, or choose from a versatile range of alternative CNC controllers, including the Spectrum S680 and ESA S630. Backed by a tempered frame and floor-type boring precision, it ensures years of deformation-free operation.
When reliability meets advanced electro-hydraulic synchronization, the Performance Series stands as your premier solution for efficient sheet metal processing.
LIANGJI PERFORMANCE Series
Includes Following Features And Properties
High Dynamic Multi-Axis Control
Same Job, 50% Energy Savings
Exceptional Rigidity, Zero Deformation
Less Waste, Lower Maintenance Costs
Standard
Equipment
- CNC Controller: Spectrum SCS 700 2D/3D CNC touch system
- Backgauge System: Advanced X and R-axis with robust “2+1” layout structur
- Frame Processing: Tempered ram and backgauge beam, fully machined by heavy-duty floor-type boring mill
- Drive System: Wannan main motor with premium Nanjing Estun servo motors
- Linear Motion: HIWIN or TBI (Taiwan) high-precision ball screws and linear guides
- Hydraulics: FIRST brand oil pump with anti-leak ferrule-type tube fittings
- Sealing Technology: Top-tier SKF (Sweden) and NOK (Japan) sealing rings
- Cylinders: High-durability Jianhu Huaxing oil cylinders
- Electrical cabinet with Schneider, Siemens components
Available Options & Upgrades
- Controller Upgrades: DELEM DA53TX, CT12, DA58T, DA66S, DA69S or ESA S630
- Axis Expansion: Full 6+1 Axis servo-driven upgrade
- Energy Efficiency: Main Motor Servo Upgrade
- Premium Hydraulics: Bosch Rexroth (Germany) valve group integration
- Safety Guards: Imported DSP Laser Protection or High-quality Domestic Laser Safe Guard
FEA & Stress Analysis
Engineered using advanced SOLIDWORKS CAE, every LIANGJI machine frame undergoes rigorous Finite Element Analysis. By simulating complex stress and heavy loads, we guarantee maximum structural rigidity and zero deformation over years of operation.
Ultimate Structural Rigidity

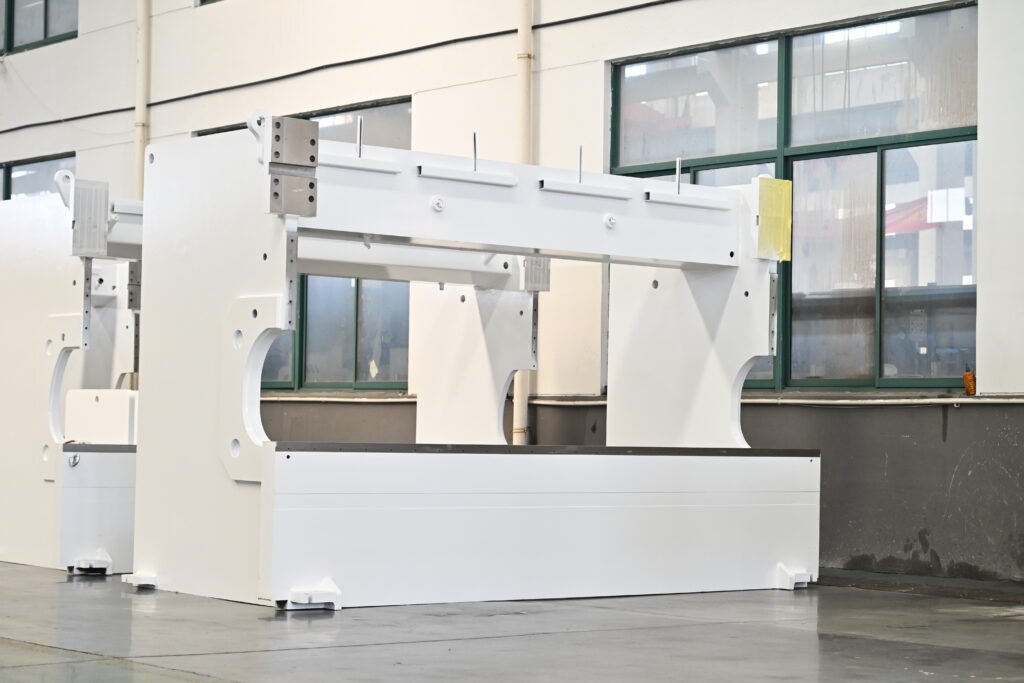

Vibratory Stress Relief & High-Temperature Furnace Tempering
Built for decades of heavy-duty operation. Every LIANGJI machine frame undergoes advanced Vibratory Stress Relief (VSR) to eliminate internal welding stresses. Combined with a strictly tempered ram, this dual-treatment guarantees lifetime dimensional stability, zero deformation, and consistent bending precision.
Precision Anti-Deflection Tempered Plate
· Strategic Placement: Installed beneath the ram to directly absorb stress.
· High-Temperature Tempered: Exceptional rigidity and wear resistance.
· Deform-Resistant: Effectively minimizes ram deflection under heavy loads.
· Extended Lifespan: Protects critical surfaces, reducing maintenance costs.
Spectrum SCS 700 2D/3D CNC touch system
- 15-inch industrial touchscreen with an intuitive graphical interface for easier operation.
- Supports Y1/Y2 and X/R/Z multi-axis control for stable bending accuracy and repeatability.
- Automatic crowning and compensation functions improve bending consistency.
- Supports graphical and multi-step programming for complex bending applications.
- USB and Ethernet connectivity for convenient data transfer and program backup.
- Stable performance with high cost-efficiency compared with European CNC systems.

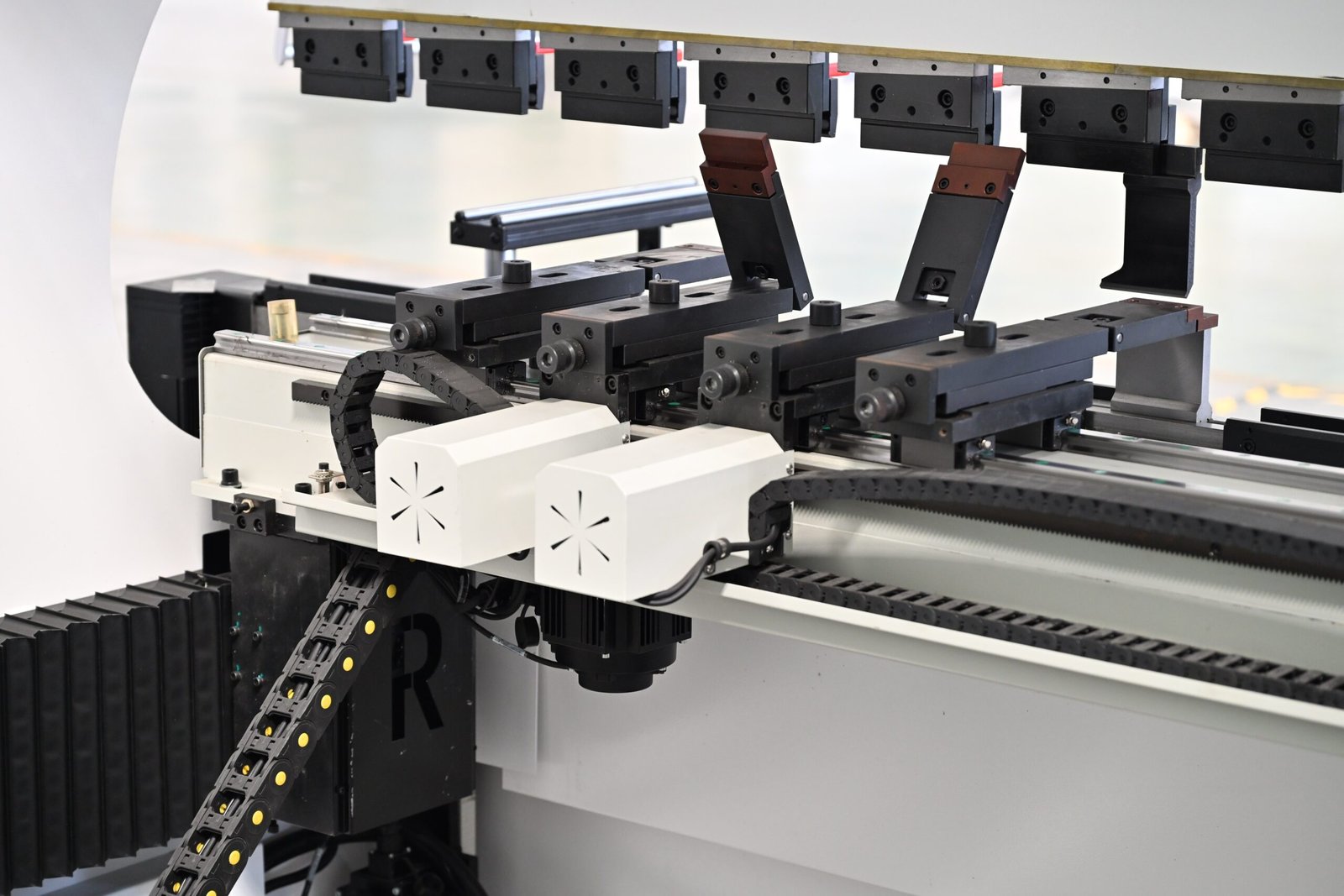

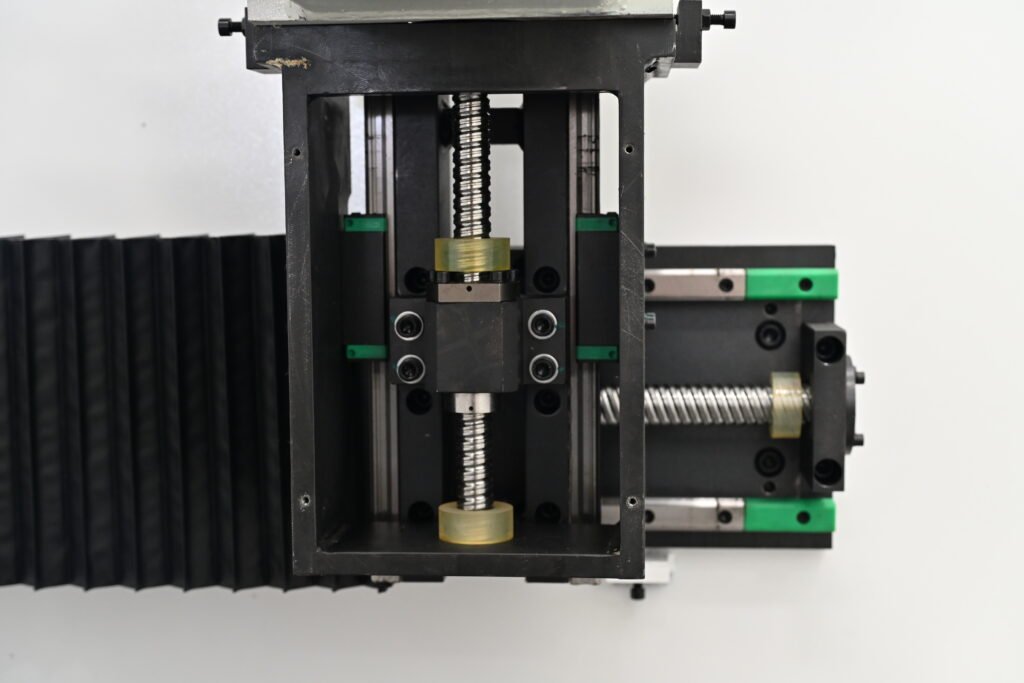

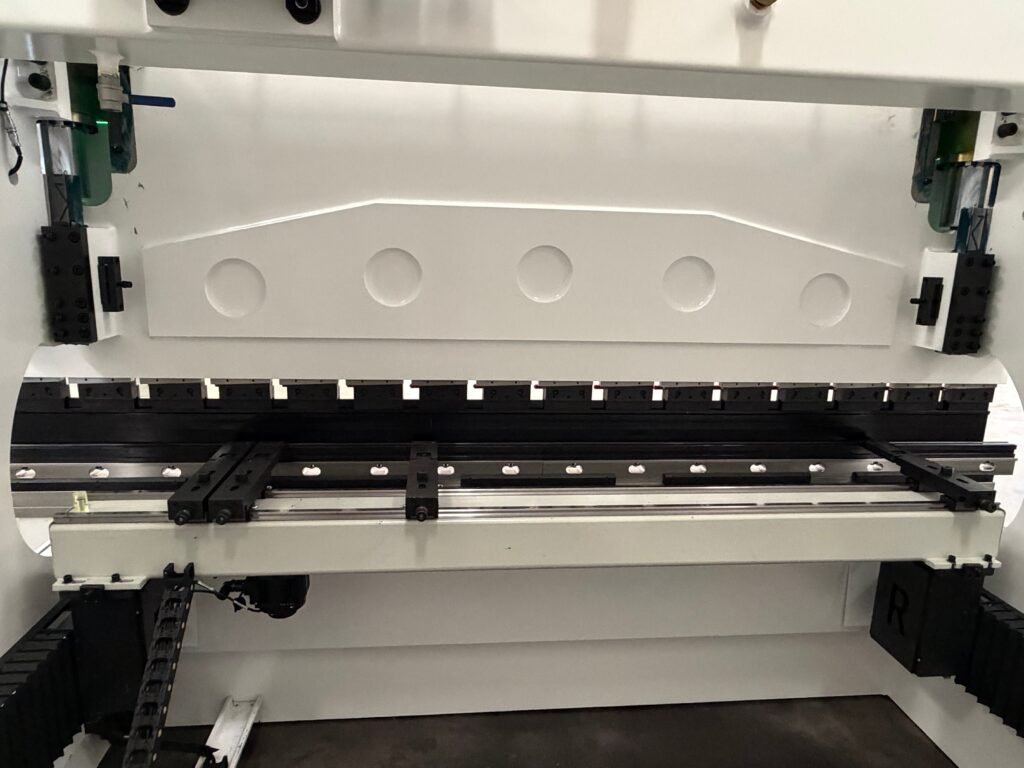

LIANGJI Center-Drive™ Precision Backgauge System
- “In-Line” central ball screw and HIWIN/TBI dual guides on X, R-axis.
- 10mm thick, 200mm wide heavy-duty beam for zero torque deflection.
- Rapid Axis X speed: 400 mm/s | Axis R speed: 200 mm/s.
- Guaranteed mechanical accuracy of ± 0.02 mm.
- Fully enclosed R-axis with customized accordion shielding.
- Sliding Z1, Z2-axis on linear guides with heavy-duty stop fingers.
- Back gauge finger: medium frequency quenched, hardness HRC 55-60.

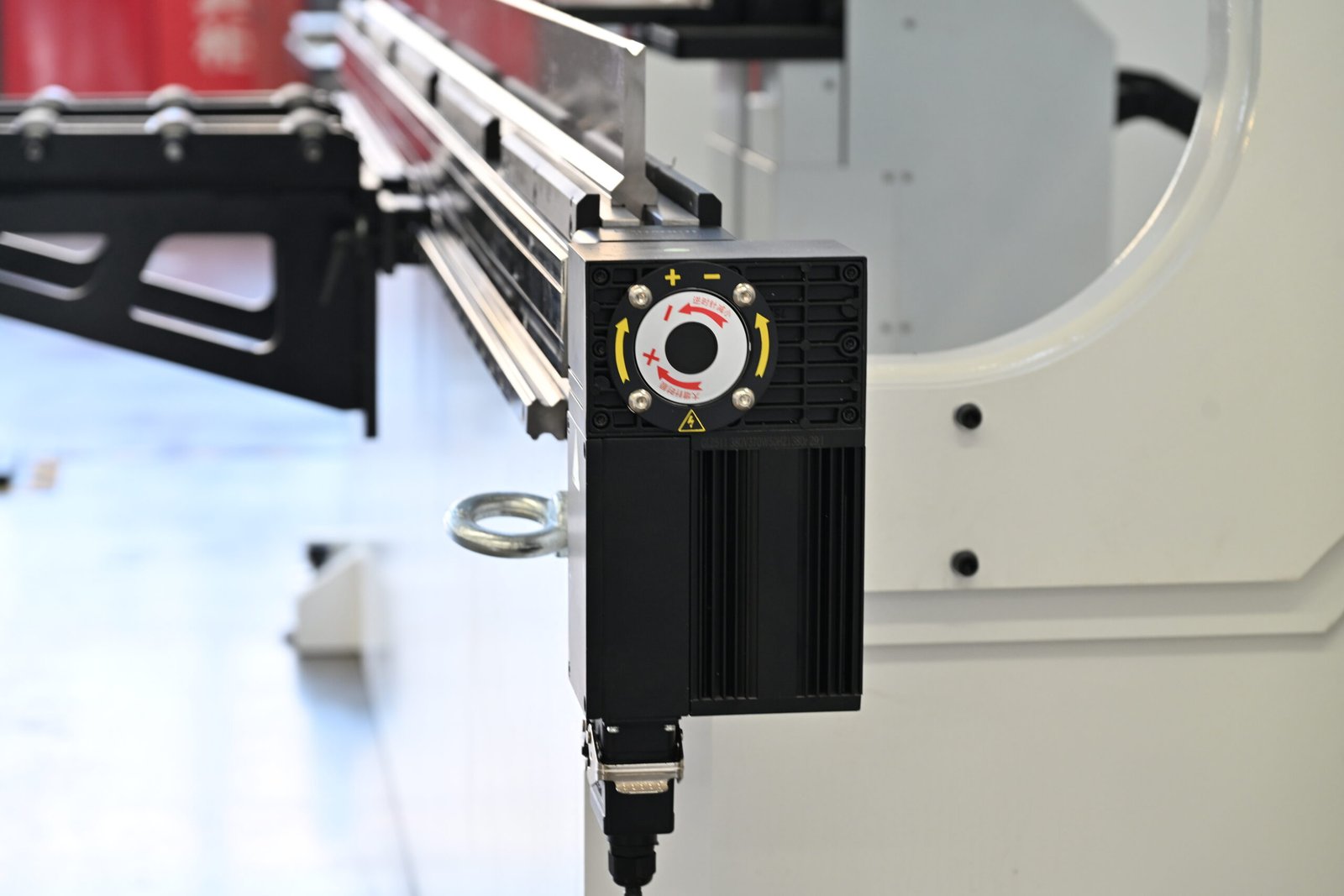

CNC Mechanical Crowning System
- Erfect Angles Every Time: The CNC-controlled crowning motor automatically adjusts the lower table’s wedge system to compensate for frame deflection during heavy bending.
- Consistent Precision: Ensures the bending angle remains absolutely identical across the entire length of the sheet metal, eliminating the “canoe” effect.
High-Precision Tooling Configuration
- Fast Clamps: Ergonomic red levers for rapid, wrench-free upper tool changes.
- Standard Tooling Setup: Equipped with a 150mm height upper punch and a V8/V12 double-V lower die.
- Anti-Rust Treatment: Sandblasted and black-oxide treated to ensure exceptional corrosion resistance and longevity.
- Bespoke Tooling Solutions: Fully customizable punches and dies manufactured strictly according to your specific bending requirements or technical drawings.
- Extreme Durability: Hardened tool steel ensures precise bending on tough materials.
LIANGJI offers the following optional CNC control systems:
| Type | Nomial Force | Worktable Length | Poles Distance | Max Open | Throat Depth | Ram Strokes | Main Motor Power | Ram Positioning Accuracy | Backgauge Repeat Positioning | Overall Dimensions (L×W×H) |
| KN | mm | mm | mm | mm | mm | kw | mm | mm | mm | |
| 40T/1600 | 400 | 1600 | 1230 | 420 | 220 | 150 | 5.5 | ≤±0.01 | ≤±0.02 | 1950*1350*2200 |
| 70T/2500 | 700 | 2500 | 2100 | 420 | 350 | 200 | 7.5 | ≤±0.01 | ≤±0.02 | 2900*1450*2400 |
| 110T/3200 | 1100 | 3200 | 2700 | 480 | 420 | 200 | 11 | ≤±0.01 | ≤±0.02 | 3600*1600*2600 |
| 130T/3200 | 1300 | 3200 | 2700 | 480 | 420 | 200 | 11 | ≤±0.01 | ≤±0.02 | 3600*1600*2650 |
| 170T/3200 | 1700 | 3200 | 2700 | 480 | 420 | 200 | 15 | ≤±0.01 | ≤±0.02 | 3600*1600*2700 |
| 220T/3200 | 2200 | 3200 | 2700 | 480 | 420 | 200 | 15 | ≤±0.01 | ≤±0.02 | 3600*1650*2750 |
| 250T/3200 | 2500 | 3200 | 2700 | 480 | 420 | 200 | 15 | ≤±0.01 | ≤±0.02 | 3600*1650*2750 |
| 320T/3200 | 3200 | 3200 | 2700 | 480 | 420 | 200 | 22 | ≤±0.01 | ≤±0.02 | 3700*2000*2900 |
| 110T/4000 | 1100 | 4000 | 3500 | 480 | 420 | 200 | 11 | ≤±0.01 | ≤±0.02 | 4400*1650*2650 |
| 130T/4000 | 1300 | 4000 | 3500 | 480 | 420 | 200 | 11 | ≤±0.01 | ≤±0.02 | 4400*1650*2650 |
| 170T/4000 | 1700 | 4000 | 3500 | 480 | 420 | 200 | 15 | ≤±0.01 | ≤±0.02 | 4400*1650*2750 |
| 220T/4000 | 2200 | 4000 | 3500 | 480 | 420 | 200 | 15 | ≤±0.01 | ≤±0.02 | 4400*1650*2800 |
| 250T/4000 | 2500 | 4000 | 3500 | 530 | 420 | 250 | 18.5 | ≤±0.01 | ≤±0.02 | 4500*1700*2800 |
| 320T/4000 | 3200 | 4000 | 3500 | 550 | 420 | 250 | 22 | ≤±0.01 | ≤±0.02 | 4500*1700*2850 |
| 400T/4000 | 4000 | 4000 | 3500 | 580 | 420 | 300 | 30 | ≤±0.01 | ≤±0.02 | 4500*1700*2900 |
| 500T/5000 | 5000 | 5000 | 3900 | 600 | 500 | 300 | 37 | ≤±0.01 | ≤±0.02 | 5600*2300*3000 |
| 600T/5000 | 6000 | 5000 | 3900 | 600 | 500 | 300 | 37 | ≤±0.01 | ≤±0.02 | 5600*2300*3100 |
| 500T/6000 | 5000 | 6000 | 4900 | 600 | 500 | 300 | 37 | ≤±0.01 | ≤±0.02 | 6700*2600*3200 |
| 600T/6000 | 6000 | 6000 | 4900 | 600 | 500 | 300 | 45 | ≤±0.01 | ≤±0.02 | 6700*2700*3300 |
| 500T/7000 | 5000 | 7000 | 5900 | 600 | 500 | 300 | 37 | ≤±0.01 | ≤±0.02 | 7700*2800*3400 |
| 600T/7000 | 6000 | 7000 | 5900 | 600 | 500 | 300 | 45 | ≤±0.01 | ≤±0.02 | 7700*2800*3400 |
