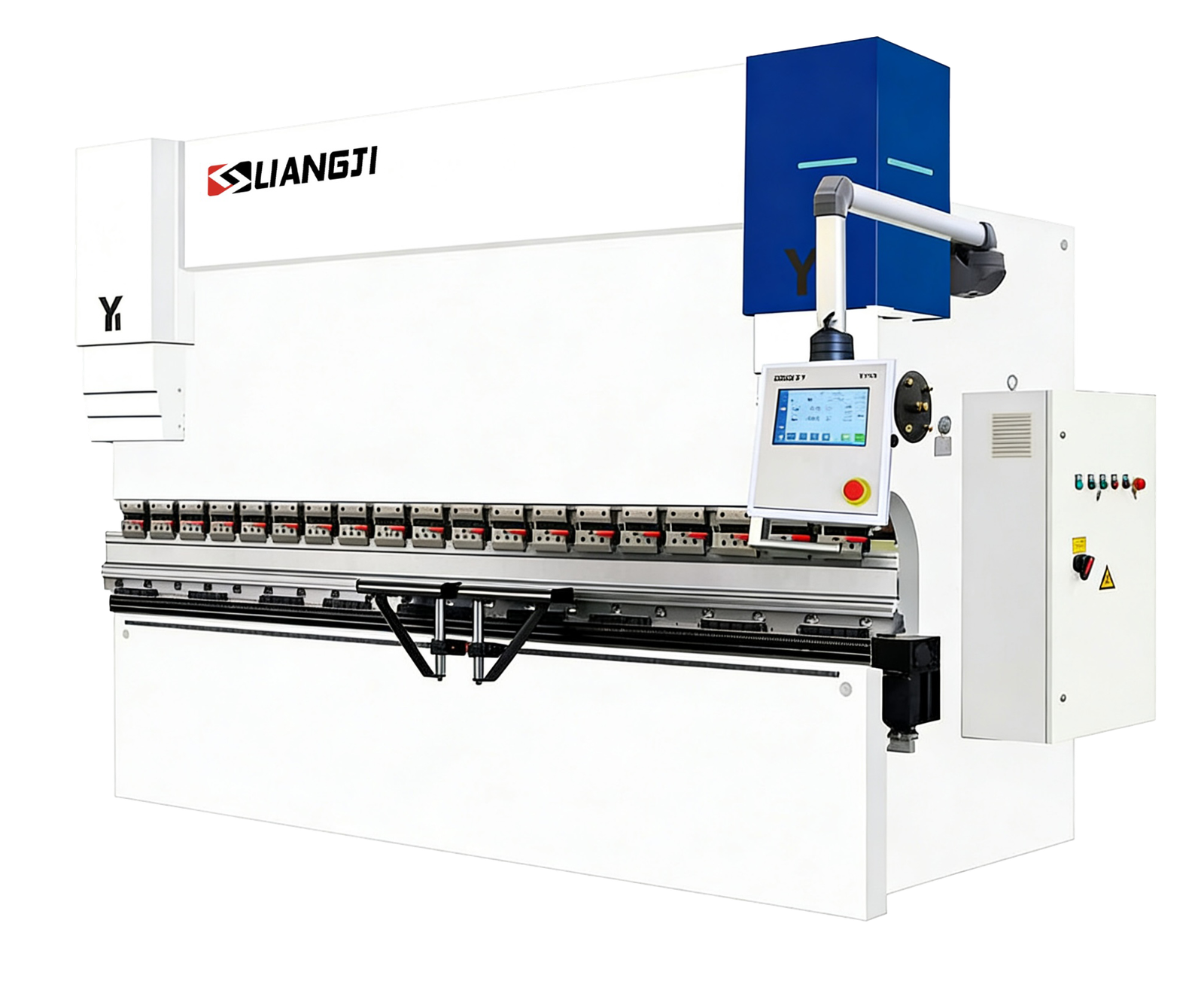

Smart Torsion Bar Hydraulic Press Brake 3-4Axis
LIANGJI

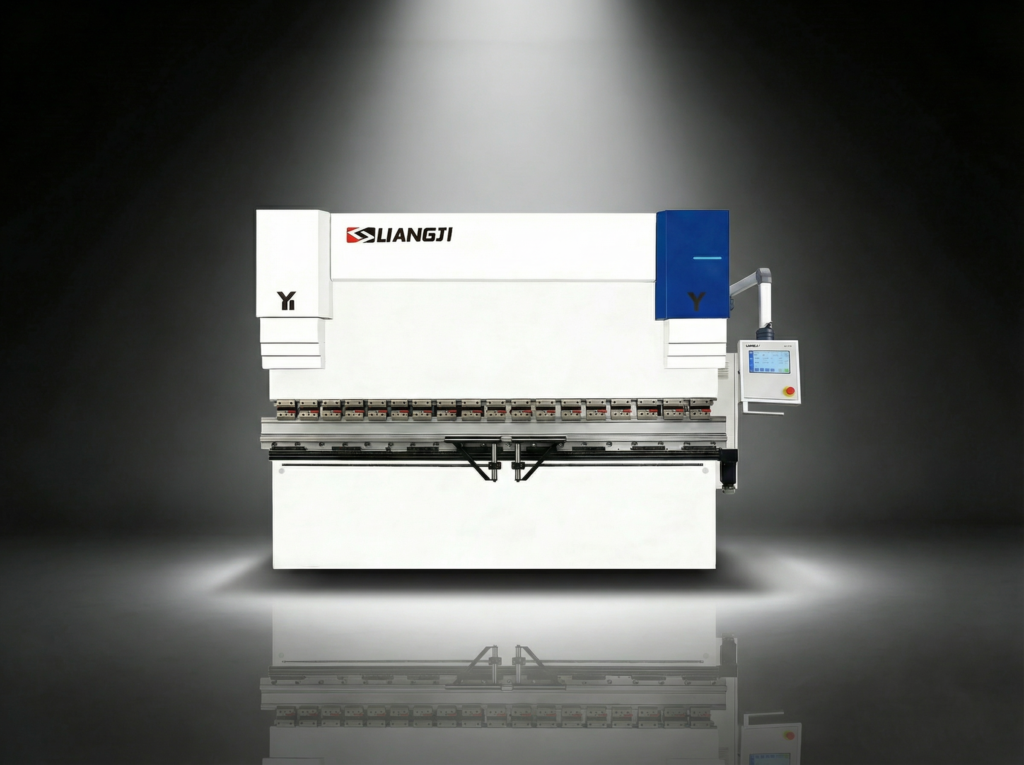

Smart Series | 3-4 Axis Torsion Bar Hydraulic Press Brake
Smart touch control meets top-tier global components for durable, high-precision, and cost-effective bending

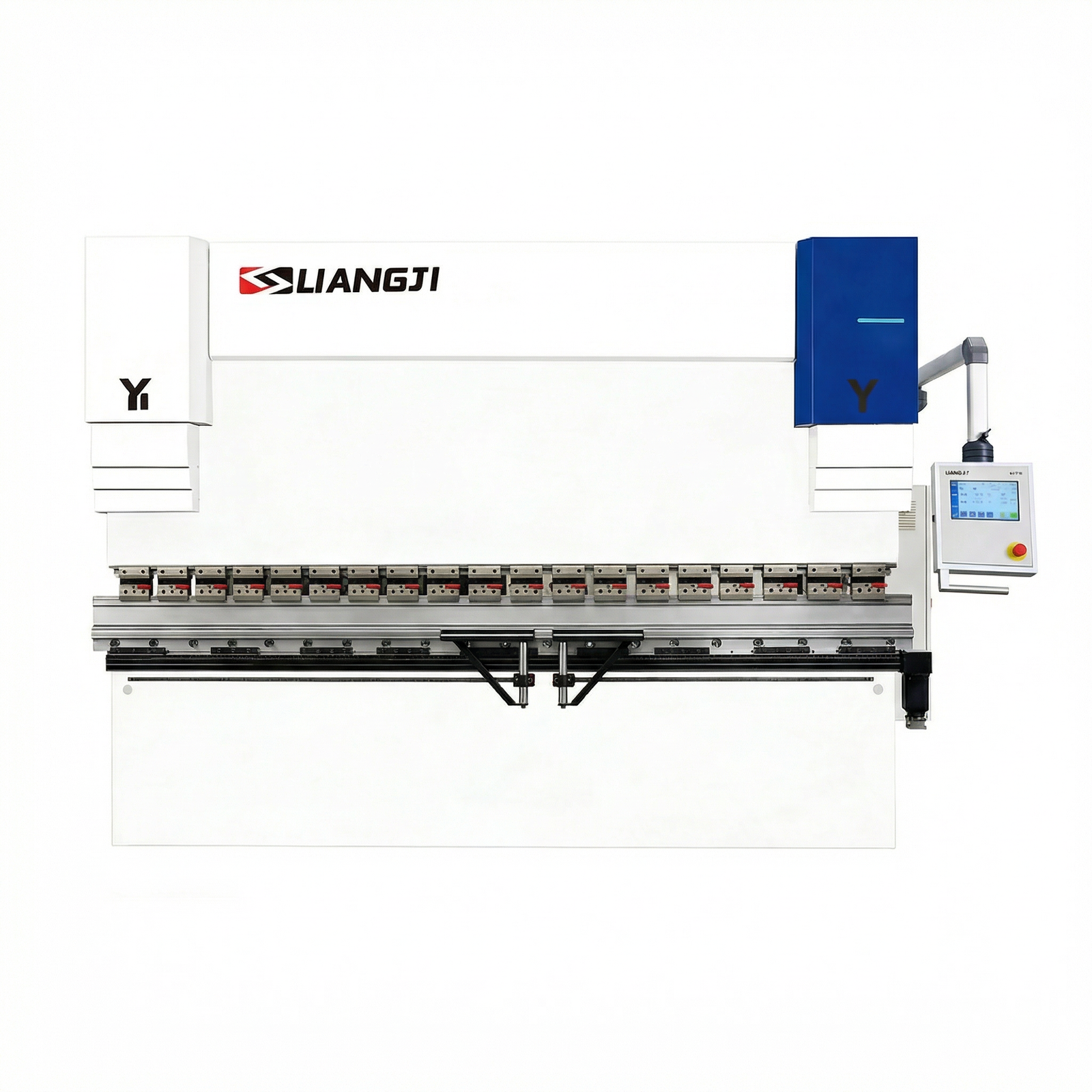

LIANGJI Smart Series Torsion Bar NC Press Brake, equipped with the TP10S control system, is a high-performance bending solution that combines a rugged, reinforced mechanical structure with a 10-inch color touchscreen interface. It features precision control for up to 4+1 axes (Y1, Y2, X, R, and V-axis crowning) and integrates top-tier international components—including Siemens motors, Rexroth hydraulics, and Schneider electrics—delivering a durable, stable, and highly accurate machine ideal for demanding industries such as shipbuilding, automotive, and heavy machinery manufacturing.
LIANGJI SMART SERIOUS
Includes Following Features And Configuration
Cost-effective
High Performances
Reliable
Eazy Operate
Standard
Equipment
- Control Unit: TP10S 10-inch color touchscreen controller (supports angle programming).
- Main Motor: Wannan Motor (High-efficiency IE3/IE4 industrial motor).
- Hydraulic System: Italy VIS valve group.
- Electrical Components: France Schneider Electric.
- Drive System: EasyCat servo motors and drivers for X & Y axis.
- Transmission: Taiwan HIWIN ball screw and linear guide rails.
- Oil Pump: USA First/Sunny high-performance pump.
- Sealing: Japan NOK high-pressure seal rings.
- Pipe Connectors: Germany EMB professional hydraulic connectors.
- Backgauge: Precision backgauge with movable fingers on dual linear guides.
- Tooling: SPS high-precision punch and die with quick-clamping system.
- Foot Pedal: South Korea high-safety pedal with emergency stop.
FEA & Stress Analysis
Engineered using advanced SOLIDWORKS CAE, every LIANGJI machine frame undergoes rigorous Finite Element Analysis. By simulating complex stress and heavy loads, we guarantee maximum structural rigidity and zero deformation over years of operation.
Ultimate Structural Rigidity
Vibratory Stress Relief & High-Temperature Furnace Tempering
Built for decades of heavy-duty operation. Every LIANGJI machine frame undergoes advanced Vibratory Stress Relief (VSR) to eliminate internal welding stresses. Combined with a strictly tempered ram, this dual-treatment guarantees lifetime dimensional stability, zero deformation, and consistent bending precision.

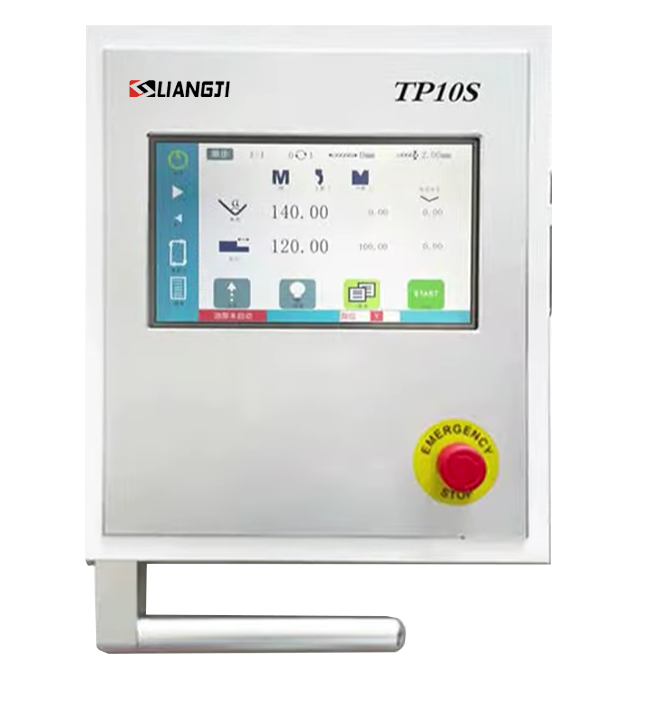

TP10 CNC Control System
- Smart Touch Control: 10-inch HD touchscreen for easy, smartphone-like operation.
- Angle Programming: Just input the angle; the system automatically calculates the bending depth.
- Multi-Axis Precision: Efficiently controls up to 4+1 axes for complex parts.
- High Efficiency: Stores 200+ programs to minimize setup time for repeat jobs.
- Best Value: Advanced CNC features at a very competitive price.
High-Precision Tooling Configuration
- Fast Clamps: Ergonomic red levers for rapid, wrench-free upper tool changes.
- Standard Tooling Setup: Equipped with a 150mm height upper punch and a V8/V12 double-V lower die.
- Anti-Rust Treatment: Sandblasted and black-oxide treated to ensure exceptional corrosion resistance and longevity.
- Bespoke Tooling Solutions: Fully customizable punches and dies manufactured strictly according to your specific bending requirements or technical drawings.
- Extreme Durability: Hardened tool steel ensures precise bending on tough materials.
