VersaForm Series | Multi-Functional Electro Horizontal CNC Press Brake
One Multi-Functional Horizontal Machine for Punching, Bending, and Flattening

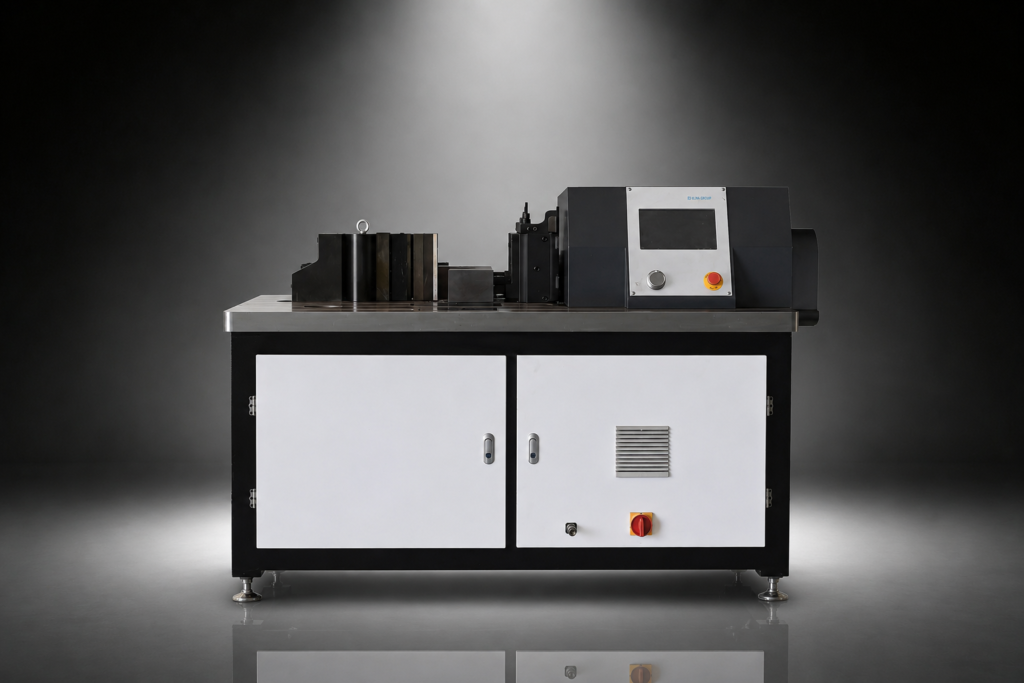

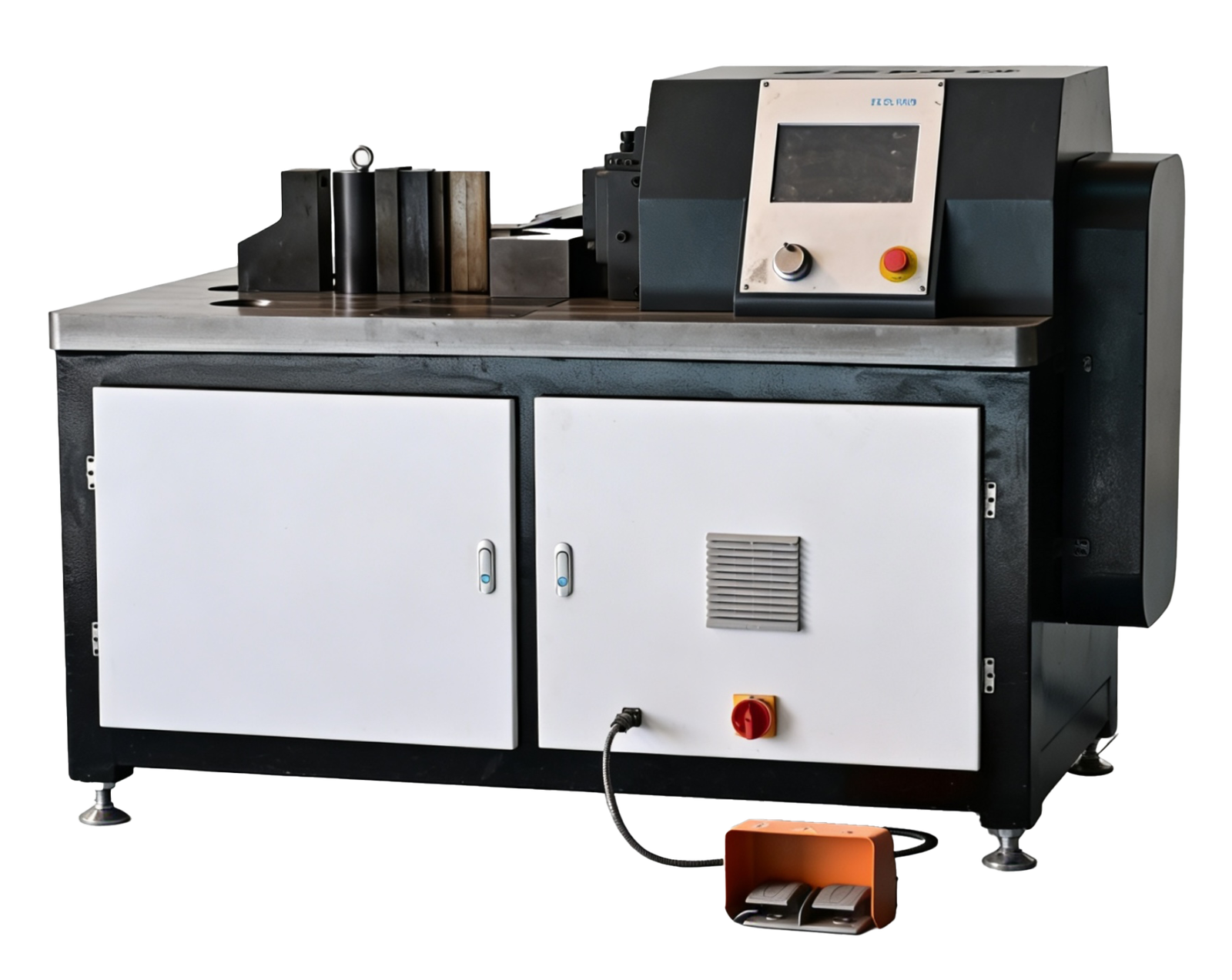

The LIANGJI® VersaForm Multi-Functional Horizontal Bending Machine redefines metal fabrication efficiency by seamlessly integrating punching, bending, and flattening into a single, high-precision platform. Engineered specifically for complex tube processing and multi-process sequential operations, this advanced machine eliminates the need for multiple standalone units and secondary workpiece handling. Featuring a fully open horizontal workspace, a robust multi-axis CNC control system, and energy-saving servo technology, it delivers exceptional operational flexibility, reduces factory labor costs, and maximizes production throughput for high-end manufacturing.
LIANGJI VersaForm Series
Includes Following Features And Properties
Extreme Bending Power, Flawless Precision
Ultimate Versatility, 8+1 Axis Mastery
Absolute Frame Rigidity, Zero Deformation
Maximum Output, Lower Operating Costs
Standard
Equipment
- Main Motor: EasyCAT (Pure electric servo power source).
- CNC System: EasyCAT ECO-10ES.
- Linear Guide: Taiwan HIWIN (High rigidity and precision).
- Ball Screw: German IF (Smooth and precise transmission).
- Electrical Components: Schneider (Global standard for safety and stability).
- Bearings: NACHI (Japan) (Ensures high durability under heavy loads).

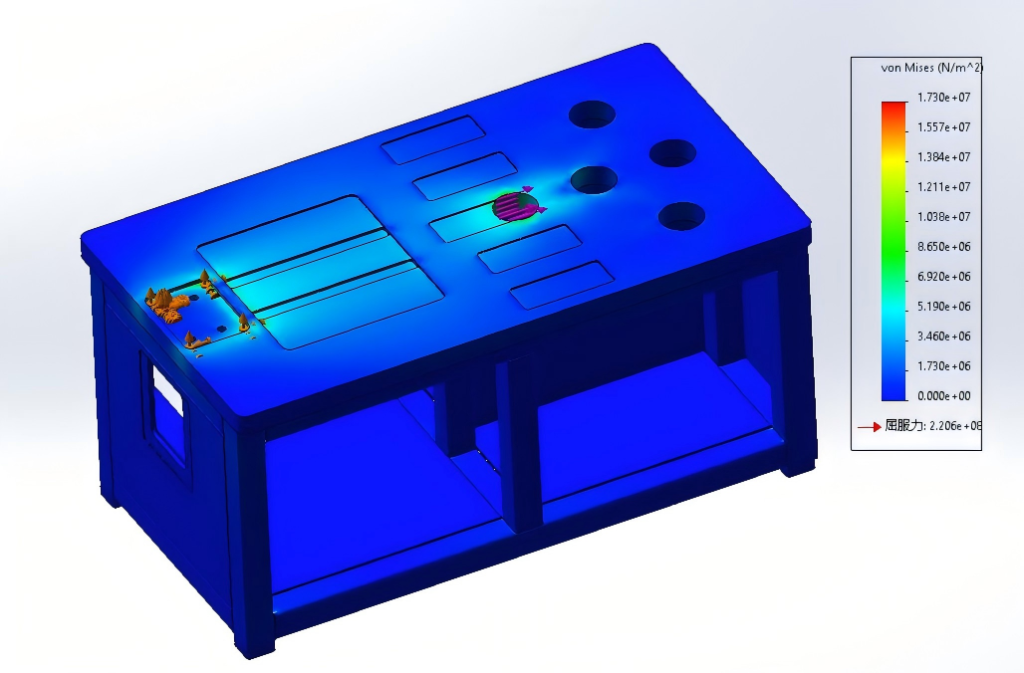

FEA & Stress Analysis
Engineered using advanced SOLIDWORKS CAE, every LIANGJI machine frame undergoes rigorous Finite Element Analysis. By simulating complex stress and heavy loads, we guarantee maximum structural rigidity and zero deformation over years of operation.

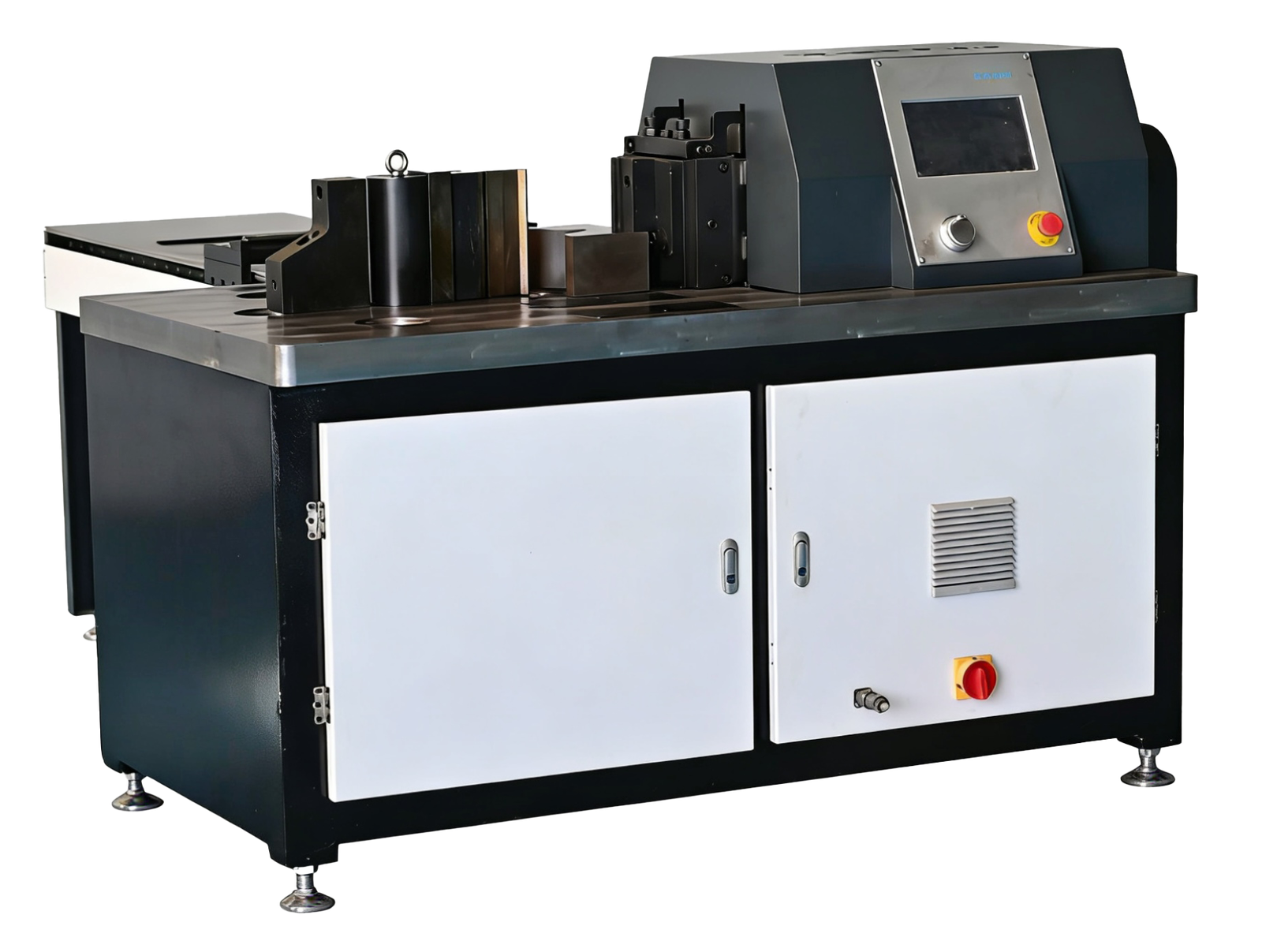

Optimized Horizontal Architecture

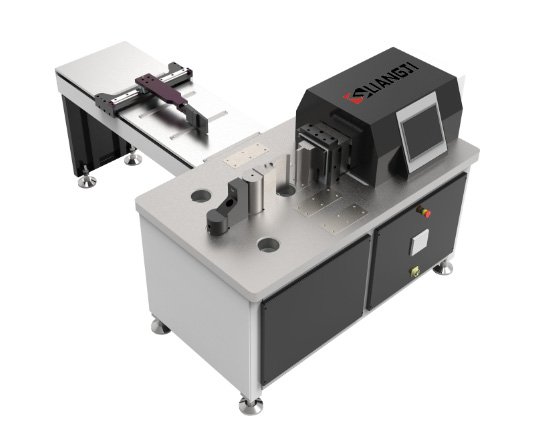

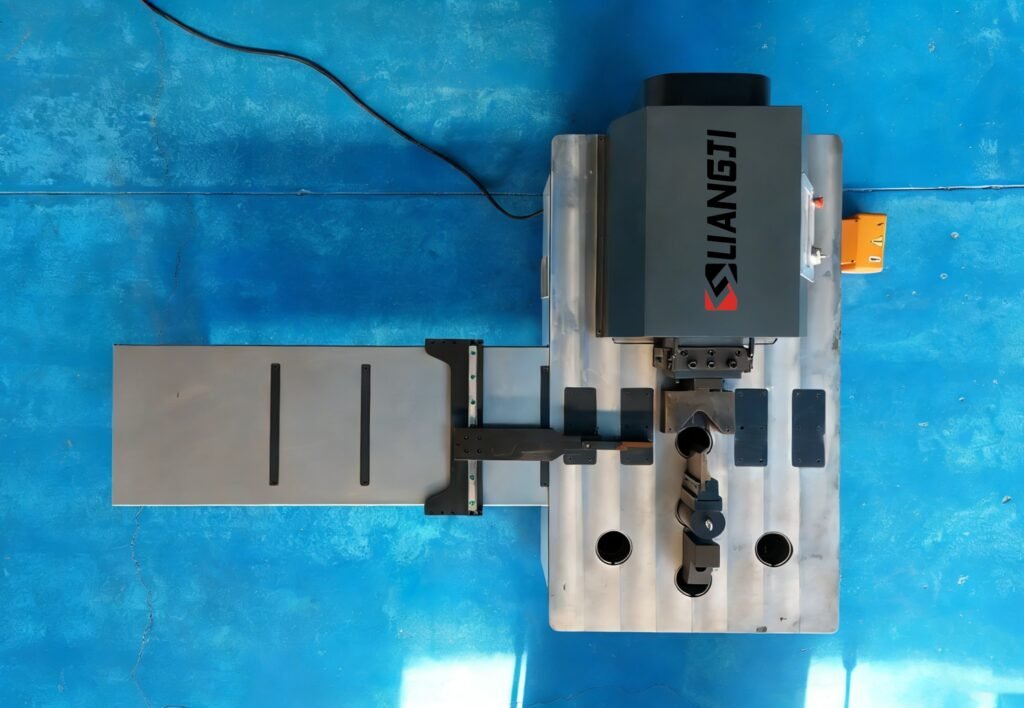

Open Workspace & Seamless Multi-Process Execution Engineered with a fully open, minimalist horizontal workspace, the LIANGJI VersaForm delivers unmatched flexibility for long and flat workpieces. By replacing standalone machinery, its space-saving 3-in-1 design flawlessly handles punching, bending, and flattening on a single platform, optimizing factory floor layout while boosting production throughput.

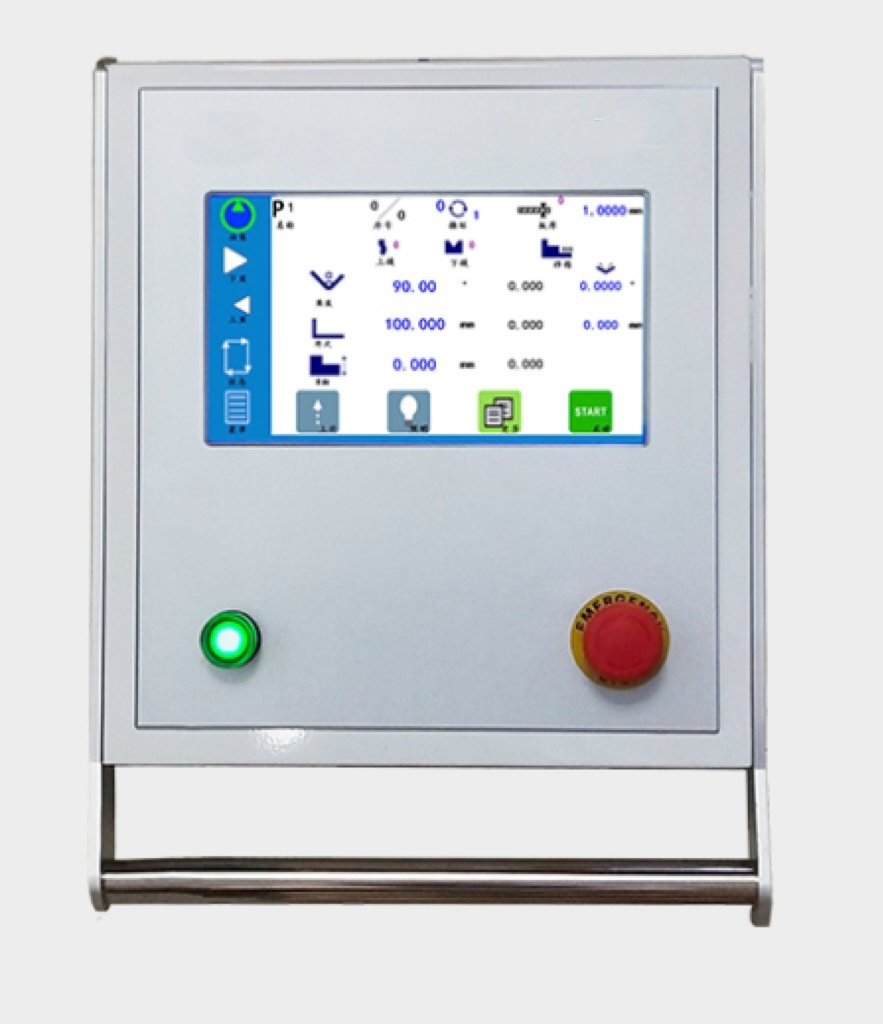

Technical Advantages of the ECO-10ES CNC System
- ±0.01mm High Precision & Consistency: Powered by pure electric servo control, it completely eliminates precision drift caused by hydraulic oil temperature fluctuations, delivering an exceptional repetitive positioning accuracy of ±0.01mm for flawless batch production.
- Rapid Response & Faster Cycle Times: Optimized specifically for electric servo press brakes, the system maximizes motor responsiveness to achieve rapid approaching speeds of 120–200mm/s, significantly shortening single-bending cycle times and boosting daily output.
- Smart Energy-Saving Logic: Utilizing an advanced “on-demand” frequency control, the system automatically calculates and outputs the exact power needed for each stage (fast down, working, pressure holding, and return) while dropping to near-zero consumption during standby.
- Eco-Friendly Green Operation: The full-electric architecture entirely replaces traditional hydraulics, ensuring a completely leak-free, oil-free workshop environment that easily complies with stringent global green-factory and environmental standards.
- User-Friendly Multi-Axis Programming: Standardized with precise programmable control for both the ram (D-axis) and the back gauge (X-axis), featuring an intuitive interface that simplifies multi-process sequential setups and minimizes operator training time.
Versatile Bending for Extra-Long & Special Workpieces
Powered by advanced multi-axis CNC programming, the ECO-10ES system seamlessly coordinates complex sequential operations. When combined with the open horizontal machine architecture, it removes all physical throat-depth limitations. This allows operators to easily position, support, and execute flawless, high-precision bending on extra-long, oversized, or custom-shaped special profiles with zero workpiece interference.
| NO | project | LPE-H 20/200 | LPE-H 30/200 | LPE-H 40/200 | LPE-H 50/200 | LPE-H 63/200 |
| 1 | Pressure | 200KN | 300KN | 400KN | 500KN | 630KN |
| 2 | Workbench Length | 200mm | 200mm | 200mm | 200mm | 200mm |
| 3 | Slide Stroke | 150mm | 150mm | 150mm | 200mm | 200mm |
| 4 | Opening Height | 420mm | 420mm | 420mm | 470mm | 470mm |
| 5 | Backgauge Stroke | 800mm | 800mm | 800mm | 1000mm | 1000mm |
| 6 | Slider Speed | 0-100mm/s | 0-100mm/s | 0-100mm/s | 0-100mm/s | 0-100mm/s |
| 7 | Main Motor Power | 5.5KW | 7.5KW | 7.5KW | 11KW | 15KW |
| 8 | Machine Weight | 1550KG | 1720KG | 2100KG | 2370KG | 2580KG |
