Many CNC press brakes may appear similar in specification, but long-term machine stability depends on far more than tonnage or controller configuration.
In real production environments, long-term bending precision is heavily influenced by frame rigidity, thermal stability, transmission accuracy, wear resistance, and overall manufacturing craftsmanship.
For heavy-duty bending applications, even small structural deformation or positioning deviation can gradually affect product consistency over years of continuous operation.
At Liangji Machinery, we focus not only on premium components, but also on the engineering details hidden inside every heavy-duty CNC press brake.
From frame structure and thermal treatment to lubrication design and wear resistance optimization, every detail is designed to improve long-term precision, operational stability, and machine durability.
1. Heavy-Duty Machine Structure & Frame Rigidity
Liangji heavy-duty press brakes are built with machine weights approximately 10%-20% higher than conventional market standards within the same specification range.
A heavier machine structure is not simply about weight itself. Greater structural mass helps absorb vibration during bending, reduces frame deflection under heavy loads, and improves overall machine stability during continuous operation.
This becomes especially important when processing long workpieces, thick materials, or high-tonnage applications.

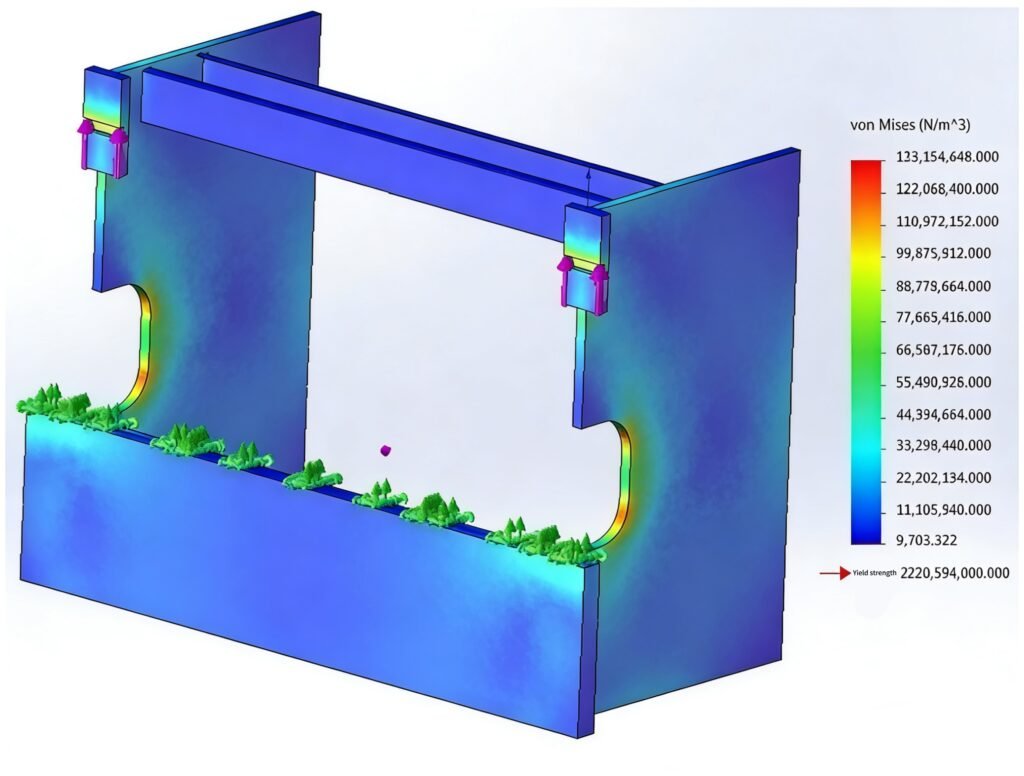

To further enhance frame rigidity, the machine structure undergoes detailed FEA (Finite Element Analysis), allowing reinforcement ribs to be strategically positioned around key stress areas such as side frames and ram support sections.

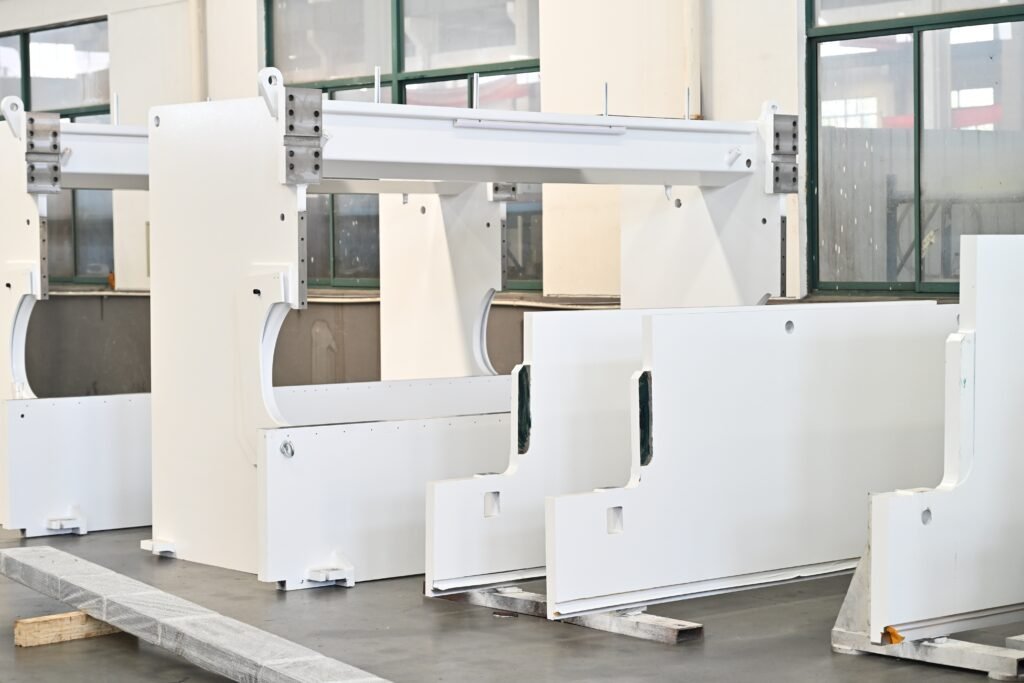

Critical structural components undergo high-temperature tempering treatment, while the machine frame is processed through vibration aging treatment to further eliminate internal stress generated during welding and machining.
Unlike lightweight machines that may gradually lose precision after years of operation, Liangji focuses heavily on long-term structural stability and fatigue resistance.
2. Full Closed-Loop Precision Control System

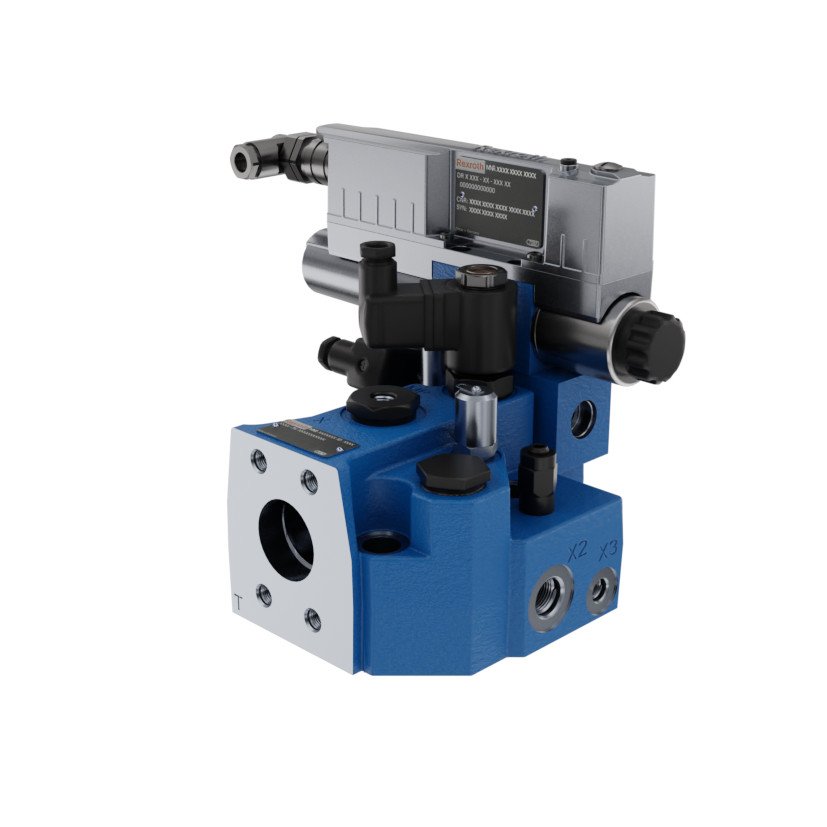

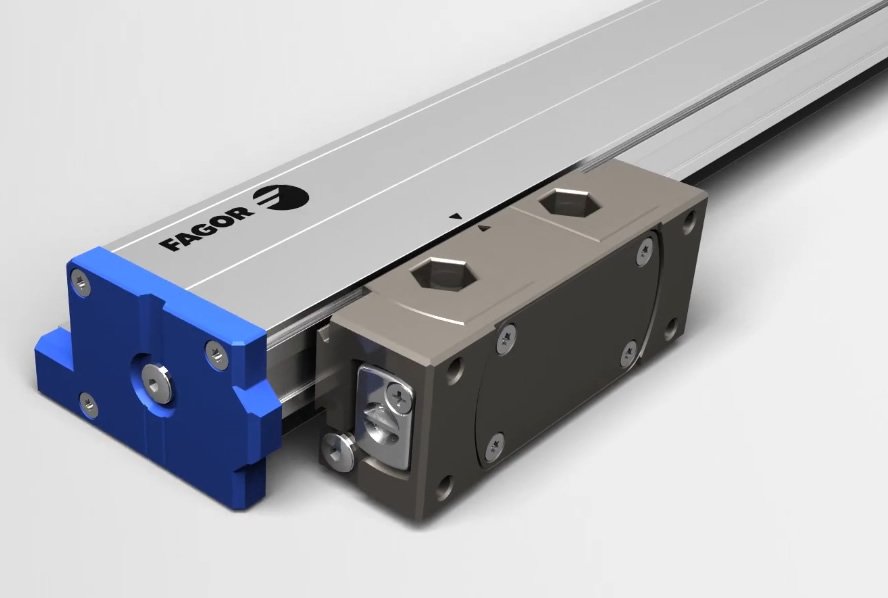

By integrating grating scales, servo proportional valves, and servo motors into a complete electro-hydraulic synchronization system, Liangji machines achieve highly responsive full closed-loop control.
The system continuously monitors and corrects ram positioning in real time, helping maintain exceptional synchronization accuracy and bending depth precision throughout the entire bending process.
Compared with conventional open-loop systems, full closed-loop control provides:
- Higher bending consistency
- Better repeatability
- Reduced positioning deviation
- More stable long-term precision

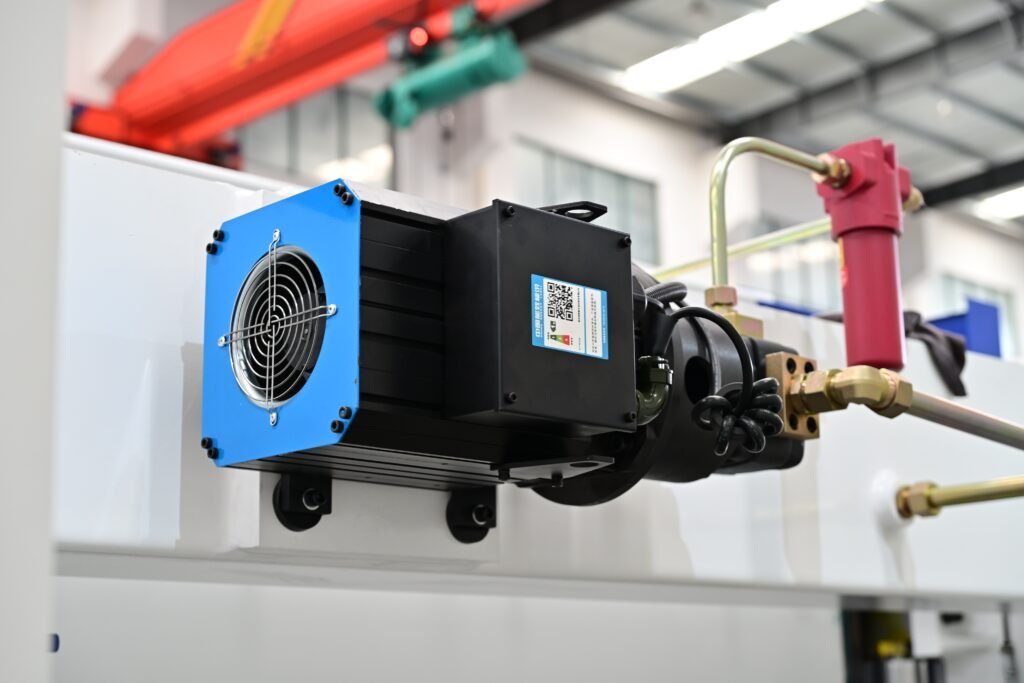

The high-performance servo system can reduce energy consumption by approximately 30%-40% compared with conventional motors, helping lower operating costs while reducing machine noise and hydraulic heat generation.
In continuous industrial production environments, stable synchronization performance is critical for maintaining product consistency and reducing production errors.

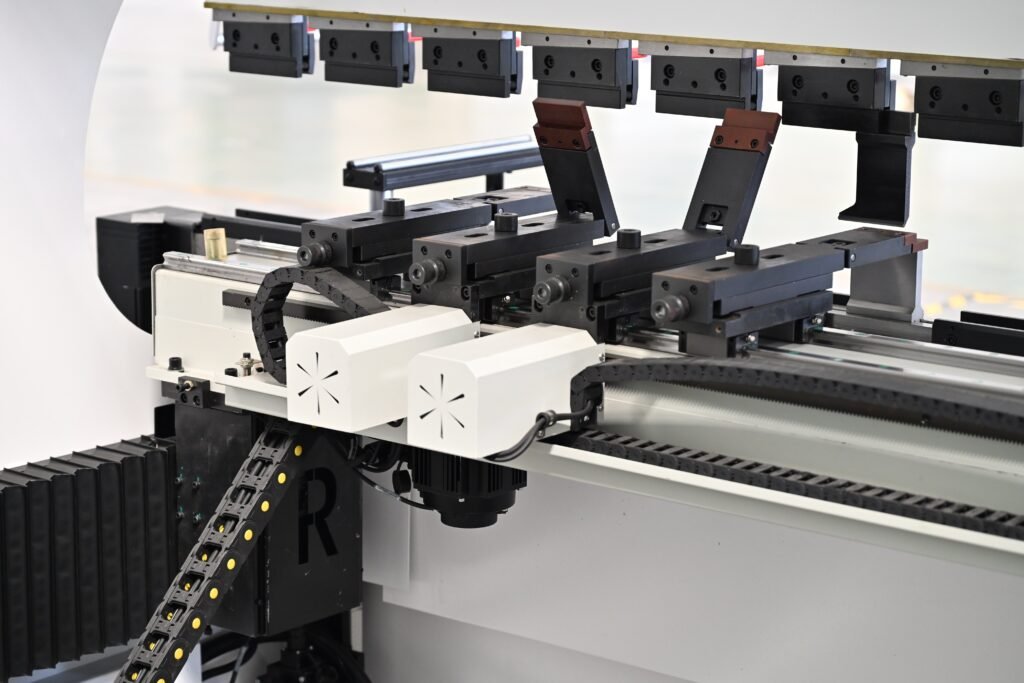

3. Patented Heavy-Duty Backgauge System
In many conventional press brakes, positioning deviation is often caused by insufficient backgauge rigidity or uneven force distribution during long-term operation.
To solve this problem, Liangji developed a patented heavy-duty backgauge system specifically designed for high-load precision applications.
The backgauge structure adopts a heavy-duty specification of 200mm × 150mm × 10mm, providing significantly stronger rigidity and load-bearing capability than standard designs.

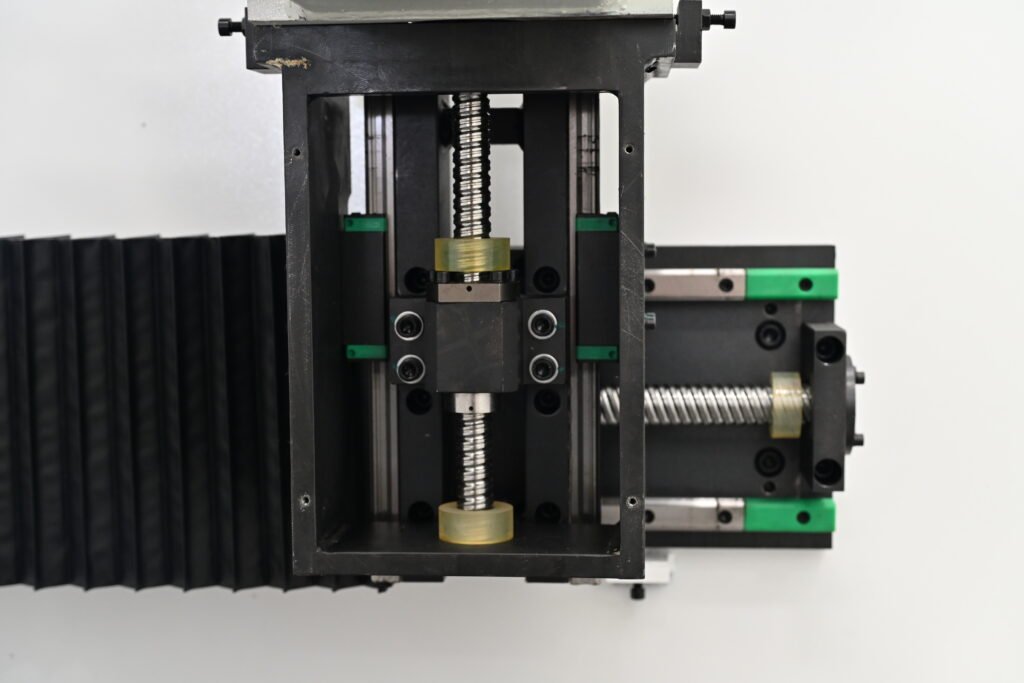

To improve positioning stability, the system uses a dual linear guide + centrally positioned ball screw layout, creating a symmetrical force distribution structure that minimizes positioning deviation caused by uneven loading.
As a result, the backgauge system achieves repeat positioning accuracy within 0.02mm, ensuring stable dimensional consistency even during continuous heavy-duty production.
4. Precision Craftsmanship Details
Many long-term precision problems in press brakes are actually caused by wear, deformation, insufficient lubrication, or poor surface protection.
To improve long-term durability and reduce maintenance costs, Liangji incorporates multiple craftsmanship optimizations throughout the machine.

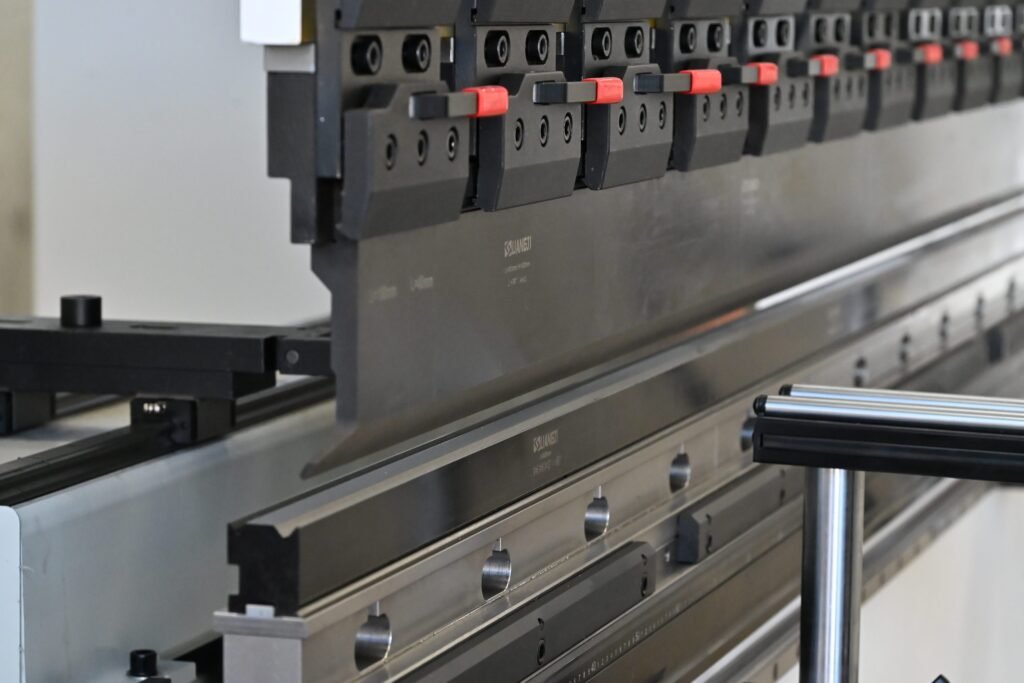

Tooling Surface Protection
The tooling surface undergoes both blackening and sandblasting treatment, improving oxidation resistance, corrosion protection, and long-term surface durability.
This helps the tooling maintain stable performance even in demanding industrial environments.

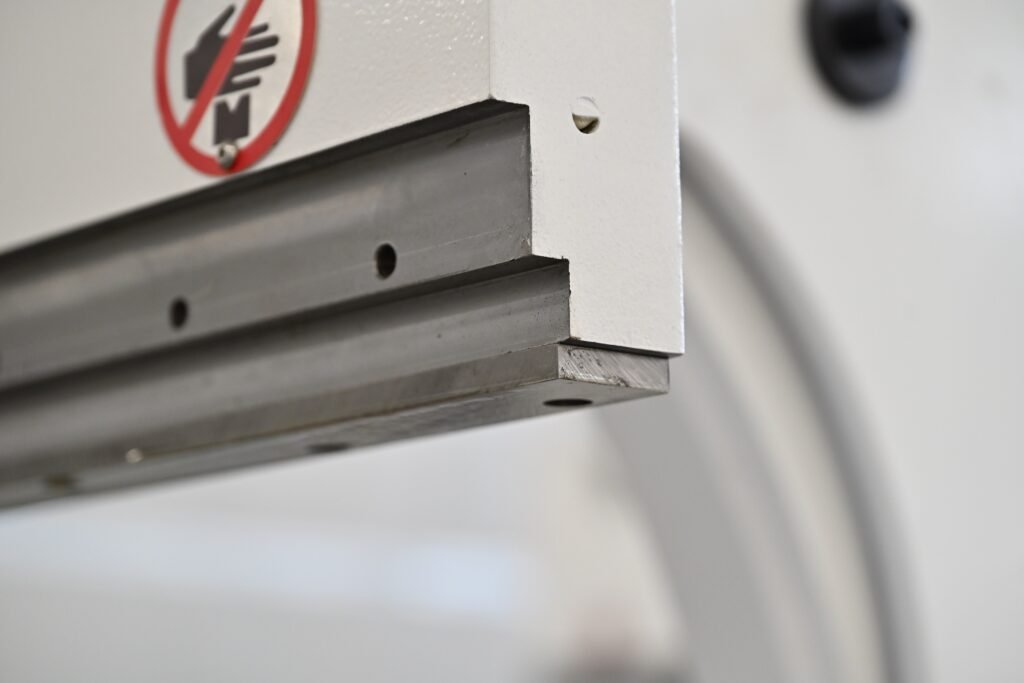

Precision Anti-Deformation Hardened Plate
A precision-hardened anti-deformation plate made of Q235 spring steel is installed beneath the ram.
With excellent rigidity and wear resistance, the plate helps reduce long-term ram deformation while protecting tooling stability during continuous heavy-duty operation.

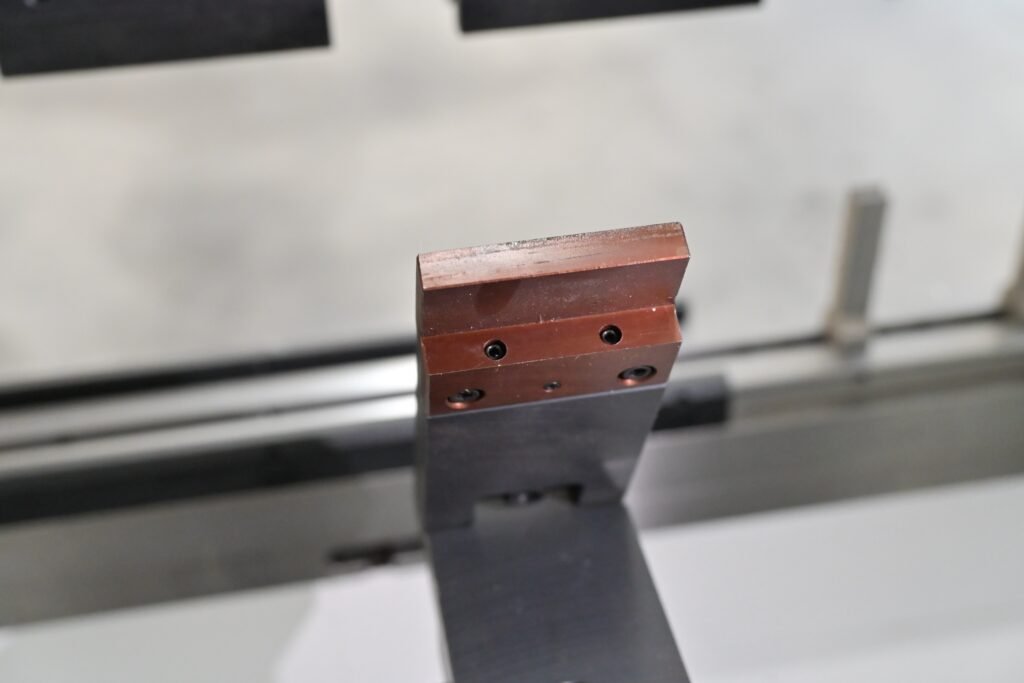

High-Hardness Backgauge Fingers
The three-stage backgauge fingers undergo high-temperature heat treatment with hardness levels reaching 55-60 HRC.
This significantly improves wear resistance, structural strength, and long-term positioning stability.

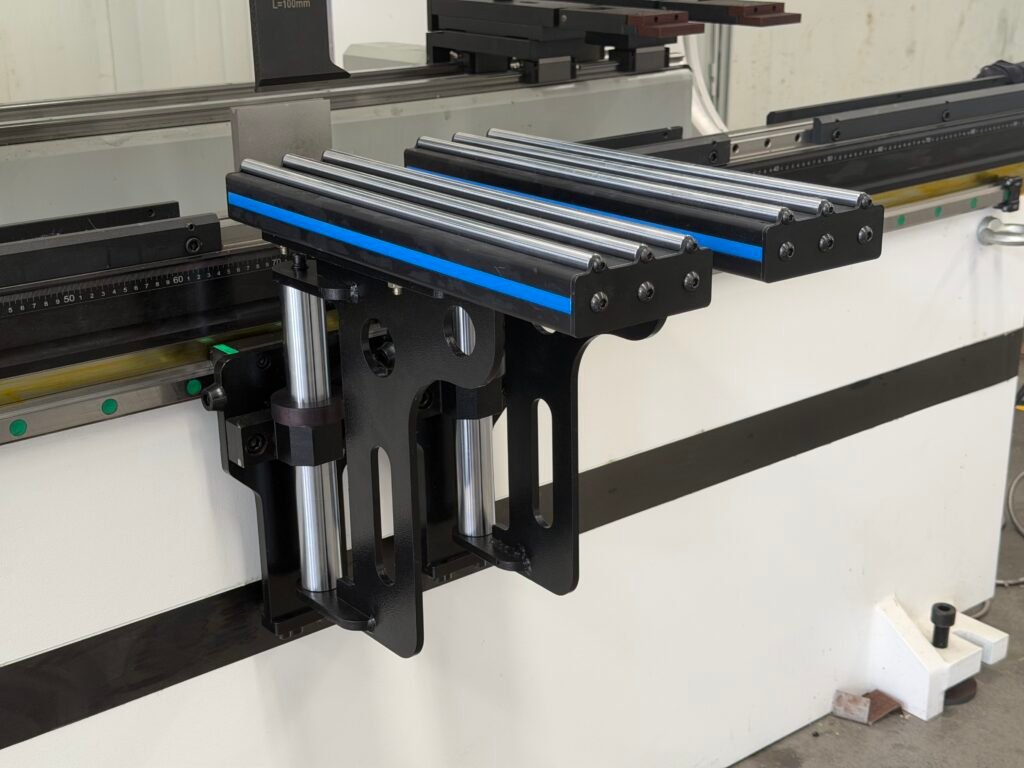

Heavy-Duty Front Support
Compared with standard front support systems, Liangji’s heavy-duty front support features a wider support surface and reinforced structure.
This provides improved stability and stronger load-bearing capability for large workpieces.

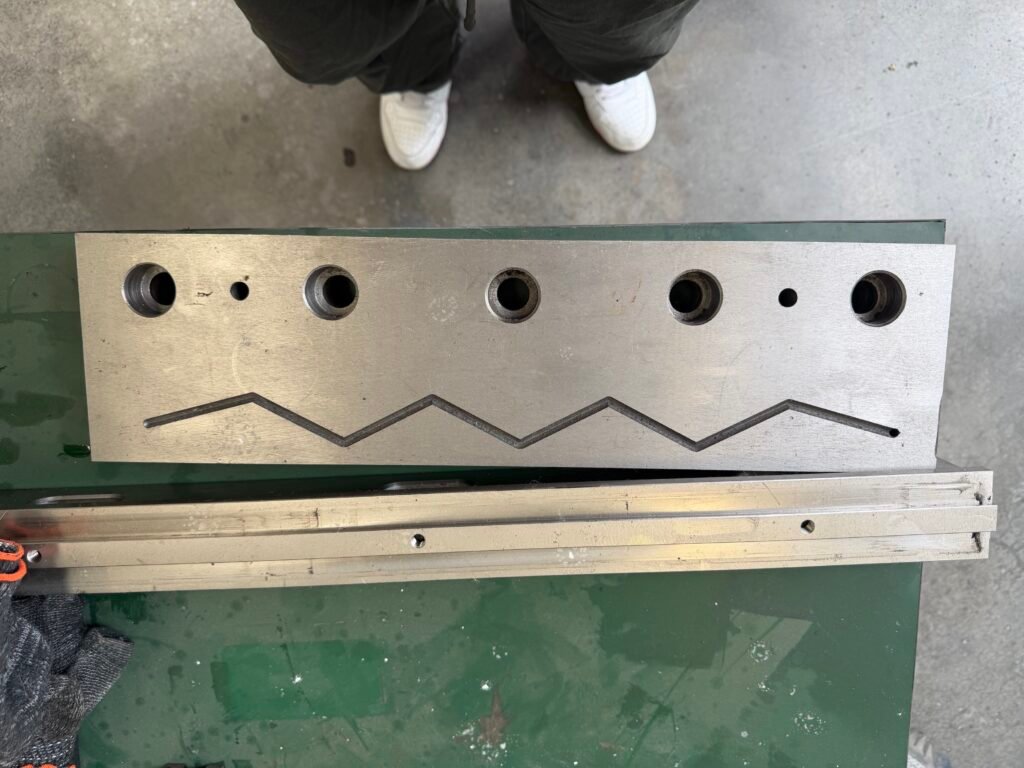

Hardened Main Guide Plate
The guide system plays a critical role in maintaining long-term ram movement accuracy.
Liangji’s hardened main guide plates undergo heat-treatment reinforcement to achieve higher hardness, improved wear resistance, and stronger anti-deformation capability.
Its serrated oil groove design improves lubrication efficiency and reduces friction during operation.
Compared with ordinary guide structures, the reinforced guide system helps maintain smoother ram movement and more stable positioning accuracy during long-term operation.
Combined with precision mounting positions and high structural rigidity, the guide plate helps maintain long-term bending accuracy while significantly reducing maintenance costs.
5. Built for Precision, Stability & Durability
At Liangji Machinery, we believe that long-term machine performance is determined not only by premium components, but also by the engineering details hidden inside the structure.
From frame rigidity and thermal treatment to lubrication design and wear resistance optimization, every engineering decision is designed to improve stability, precision, and durability in real production environments.
By combining robust mechanical structure with precision manufacturing and intelligent control technology, Liangji machines deliver the high accuracy, efficiency, strength, and reliability required for modern sheet metal fabrication.
